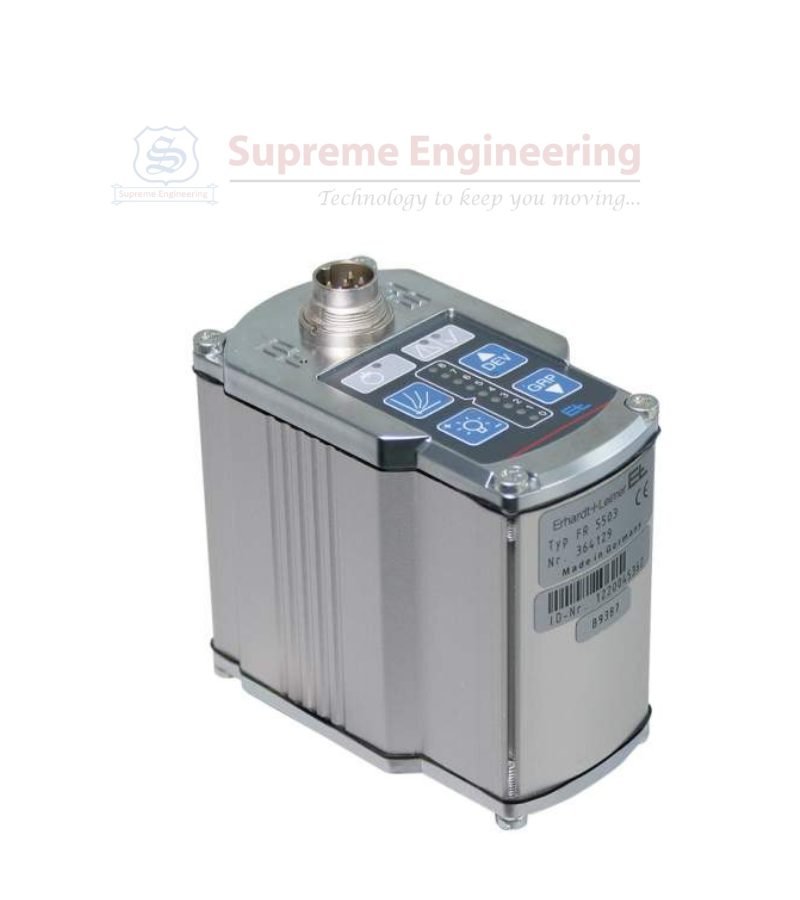

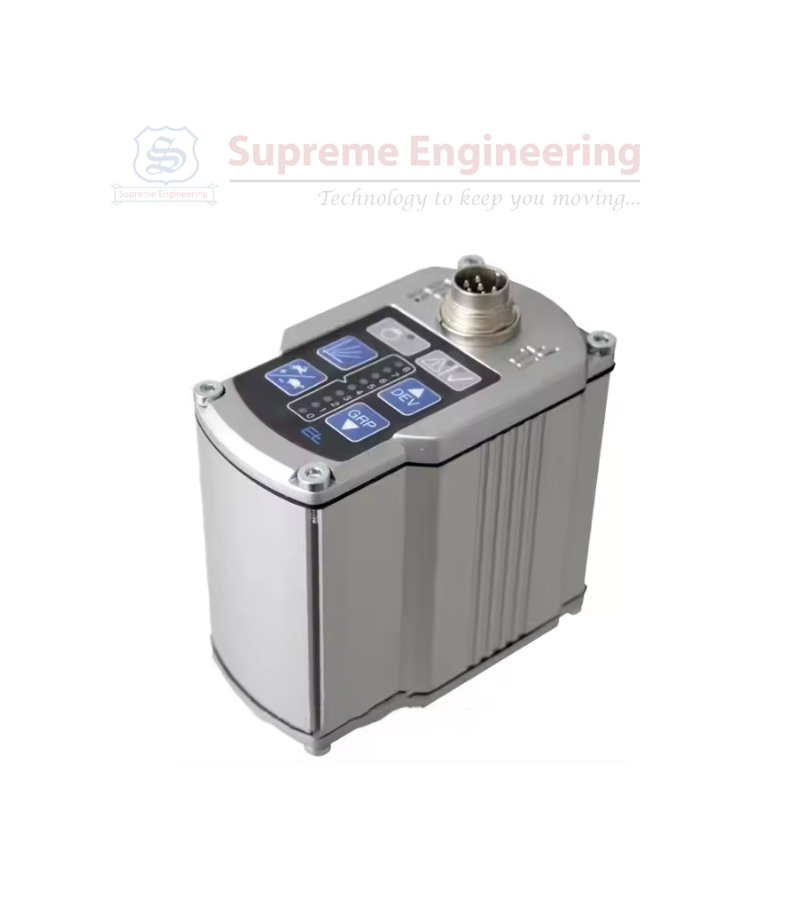

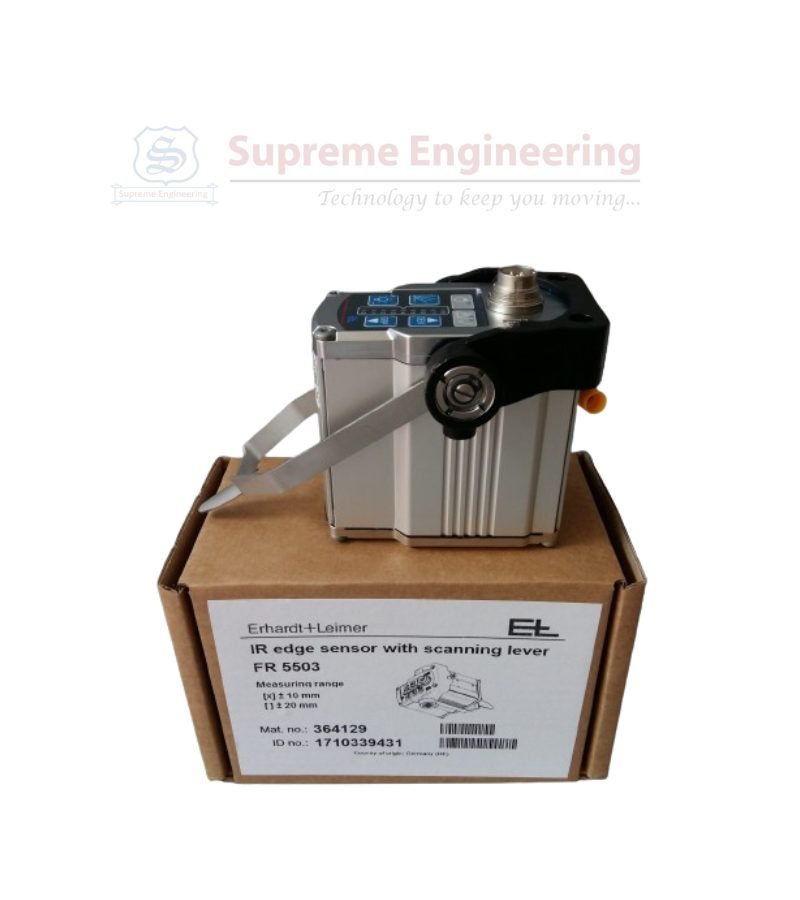

Erhardt-Leimer FR5503 Sensor

Erhardt-Leimer FR5503 Sensor

The Erhardt-Leimer FR5503 Sensor is a high-sensitivity phototransistor designed for industrial-grade optical and proximity sensing applications. Ideal for textile machinery and other automated systems, it offers reliable and accurate detection capabilities, making it a versatile choice across various industries. This refined version balances the technical details with industry-specific applications, appealing to both engineers and manufacturers.

Features:

• High Sensitivity: Accurate detection of objects, fabrics, or other targets.
• Durable Design: Withstands industrial wear and tear, including exposure to dust and moisture.
• Compact and Lightweight: Easily integrates into machinery with minimal space requirements.
• Quick Response: Ensures timely and reliable signal generation for control systems.
• Low Maintenance: Designed for long-term use with minimal upkeep.

Applications:

• Textile Industry: Detects fabric seams, edges, or presence in stenter machines and dyeing equipment.
• Automation Systems: Used in manufacturing lines for detecting parts or monitoring movement.
• Packaging Machines: Ensures accurate detection of items for sorting or quality control.
• General Industry: Suitable for applications requiring reliable object or position sensing.

How It Works:

1. Installation: The sensor is mounted near the target area where detection is required.
2. Power Connection: It is powered through a 24V DC source, with outputs linked to a control system.
3. Detection: The sensor emits a signal (optical or electromagnetic) to identify objects within its range.
4. Signal Output: Upon detection, it sends an output signal to the connected PLC or controller.
5. System Response: The control system processes the signal for automated actions like stopping, starting, or adjusting machine operations.

This Erhardt-Leimer FR5503 Sensor is critical in automation and quality control, offering precision and durability to optimize industrial processes effectively.
