FEMA DCM6

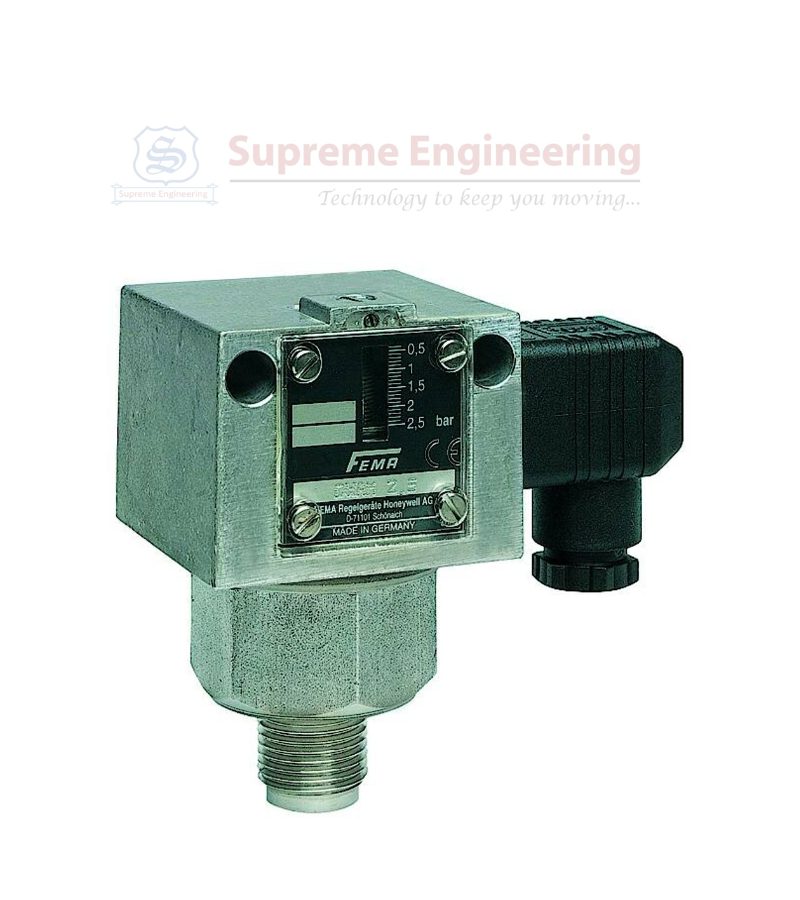

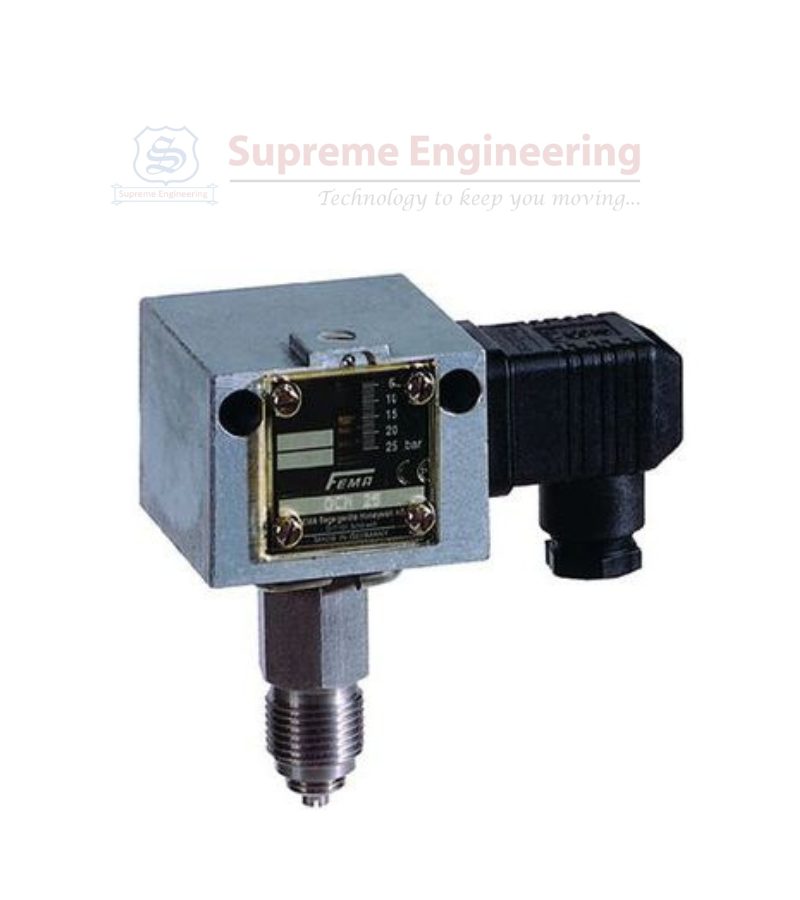

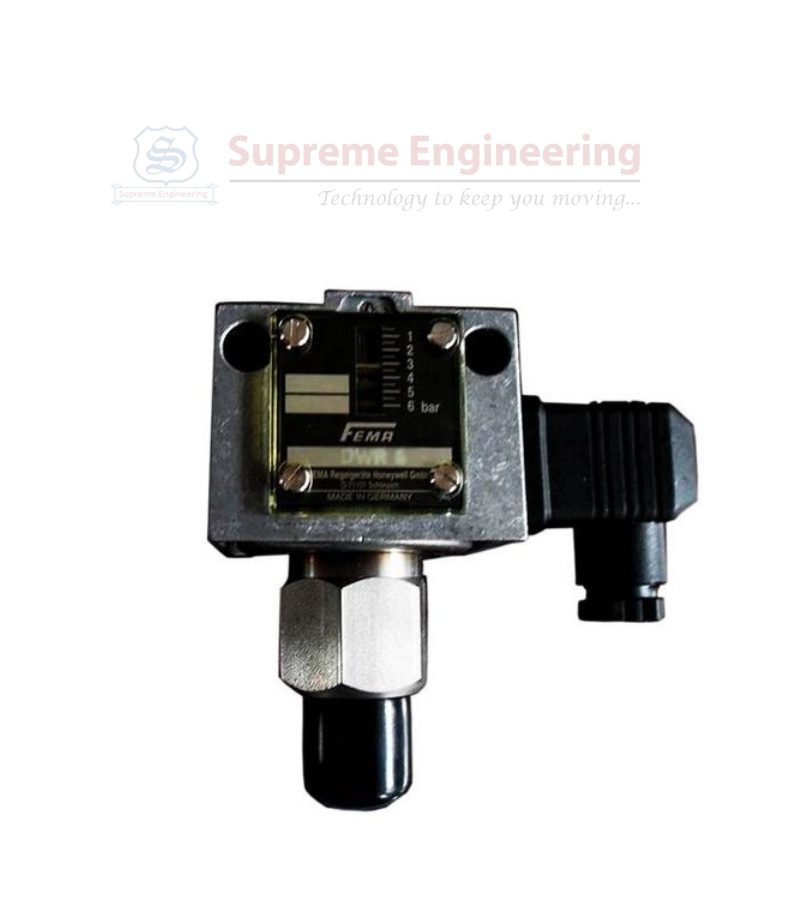

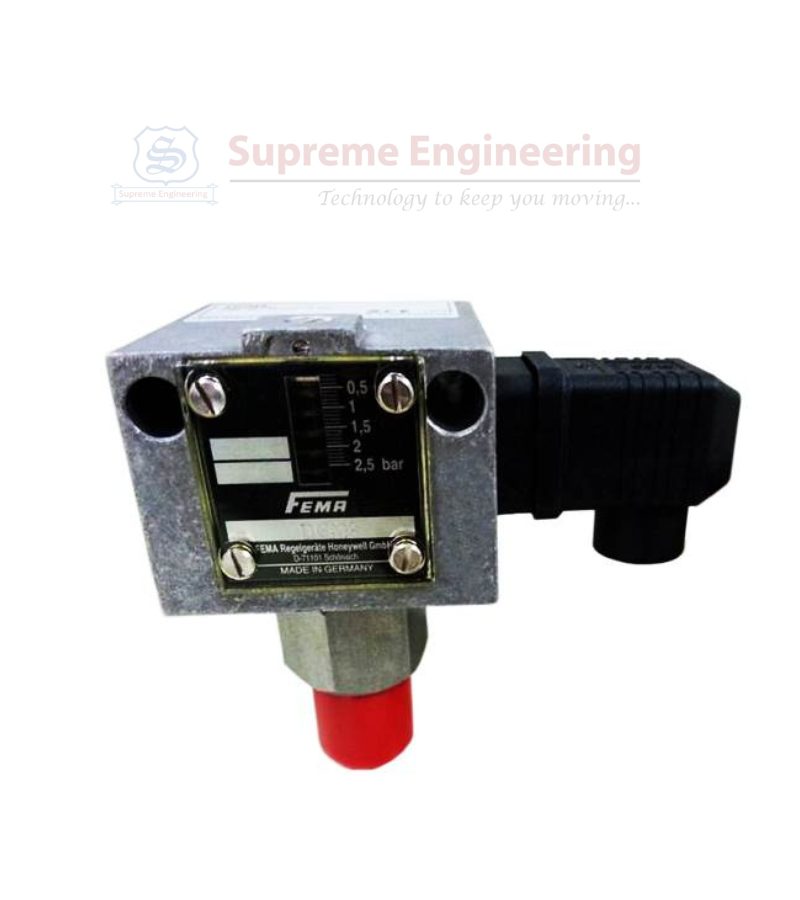

FEMA DCM6 Pressure Switch for Liquid and Gas

A pressure switch designed for overpressure monitoring in non-aggressive liquids and gaseous media. It ensures precise pressure control, making it ideal for industrial applications.

Fongs Machine Products Fema DCM6 is likely a type of control or monitoring module used in machinery for textile, garment, or industrial automation applications. Below is a generic overview based on typical specifications for such devices. Since this model is not widely recognized, the following description applies to general control modules that may have similar features.

Features:

• Pressure Type: Overpressure, relative
• Pressure Connection: Internal thread G1/4, external thread G1/2
• Electrical Connection: Plug DIN EN 175301
• Protection Class: IP54 (higher protection options available)
• Housing Material: Seawater-resistant aluminum die-cast (GD Al Si 12)
• Temperature Range:
  • Media Temperature: -25°C to 70°C (short periods up to 85°C)
  • Ambient Temperature: -25°C to 70°C
•  Switch Function & Capacity:
  • SPDT Microswitch, 250V AC
  • 5A inductive, 8A resistive

Applications:

• Textile Machinery: Often used in stenter machines, weaving looms, or textile production systems.
• Automation Systems: Integrated in larger PLC-based systems for controlling machines and monitoring sensors.
• Process Control: Used in industrial processes where digital signal inputs and outputs are essential for control and monitoring.

How It Works:

The Fema DCM6 module works by receiving and transmitting signals from the connected sensors and actuators, allowing the control system (usually a PLC or other supervisory system) to monitor machine performance, activate functions, and ensure proper operation. The communication protocols enable it to interface with a wide range of equipment, ensuring seamless integration into the broader automation system. The device typically works by interpreting input signals (such as from sensors) and triggering appropriate output actions (such as activating a motor or controlling valves).
