Lenze E84AVSCE2224VX0

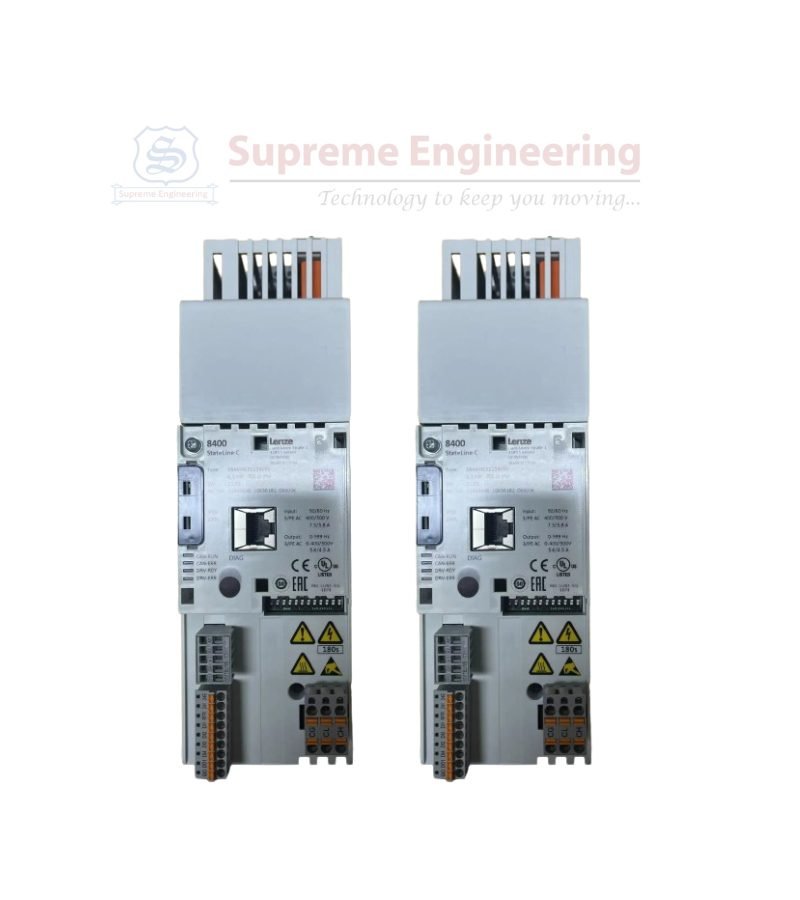

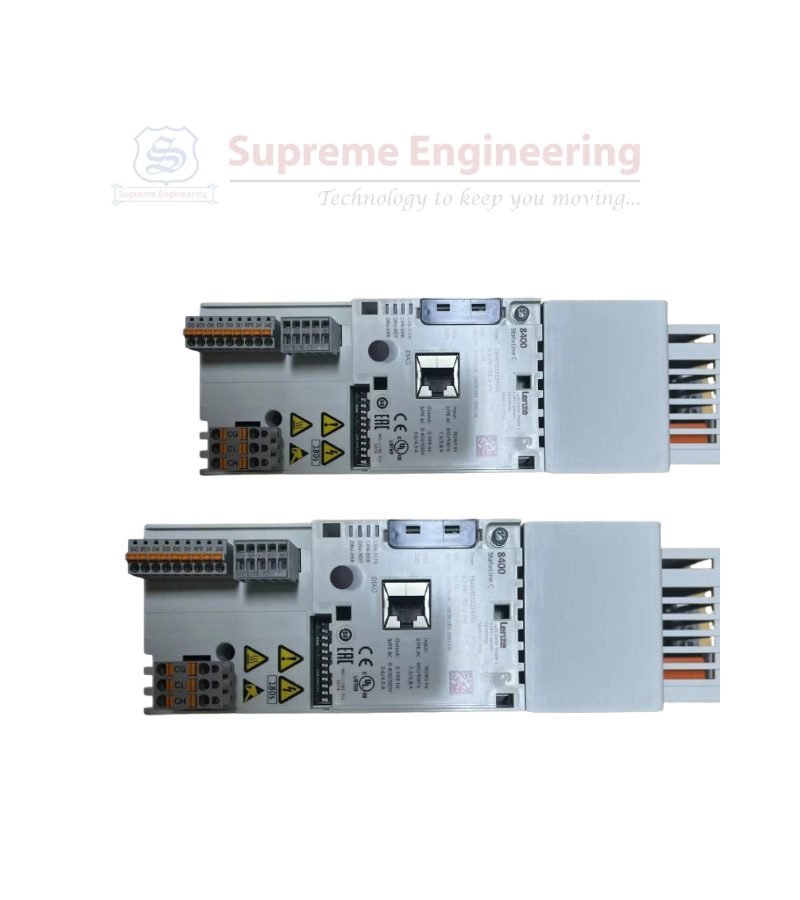

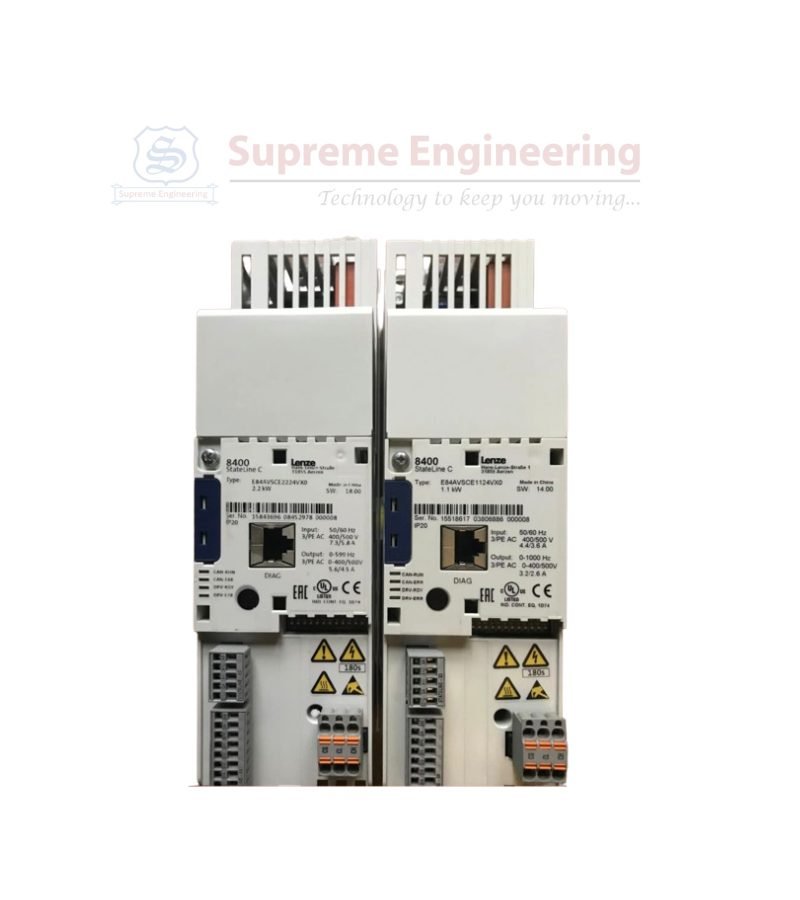

Lenze E84AVSCE2224VX0 Frequency Inverter

The Lenze E84AVSCE2224VX0 is a frequency inverter from the Lenze 8400 HighLine series, designed to provide precise motor control for a variety of industrial applications. It is built to offer high performance, energy efficiency, and flexibility in both standalone and integrated systems.

Features

1. Motor Control Versatility: Supports a variety of motor types, providing flexible control through multiple modes such as V/Hz and vector control.
2. Energy Efficiency: Optimizes energy use during operation, helping reduce operational costs.
3. Integrated Safety: Features Safe Torque Off (STO) to meet safety requirements for industrial applications.
4. Compact and Efficient Design: Small footprint with powerful performance and efficient cooling, ideal for space-constrained environments.
5. Advanced Communication: Built-in communication options allow easy integration into industrial networks like Ethernet and PROFIBUS.
6. Ease of Operation: Easy-to-use interface and programmable parameters simplify setup and monitoring.
7. Enhanced Protection: Equipped with overcurrent, overvoltage, and temperature monitoring to ensure reliable operation.
8. Customizable Control: Suitable for a variety of applications, including conveyors, pumps, fans, and more.

How It Works

The Lenze E84AVSCE2224VX0 is a variable-frequency drive (VFD) that adjusts the frequency and voltage supplied to an electric motor, allowing precise control over motor speed and torque. Here’s how it works:

1. Power Conversion: The inverter converts the incoming AC power into variable-frequency AC power, adjusting the voltage and frequency to match the motor’s requirements.
2. Motor Control:
   • V/Hz Control: Maintains a consistent ratio of voltage to frequency to regulate motor speed.
   • Sensorless Vector Control: Controls the motor’s speed and torque without the need for external sensors, improving efficiency.
   • Closed-Loop Vector Control: Provides precise motor control with feedback from motor sensors for high-accuracy performance.
3. Communication and Integration: The drive can be connected to industrial networks via Ethernet, PROFIBUS, or CANopen, enabling remote monitoring, diagnostics, and system integration.
4. Safety and Reliability: The drive continuously monitors the motor and the drive system for faults, preventing issues like overheating or overload by triggering protective shutdowns if necessary.

Applications

The Lenze E84AVSCE2224VX0 is widely used in industries such as manufacturing, HVAC, material handling, and packaging. Its compact size and versatile control make it ideal for applications like conveyor belts, fans, pumps, and other automation systems requiring precise motor control.
