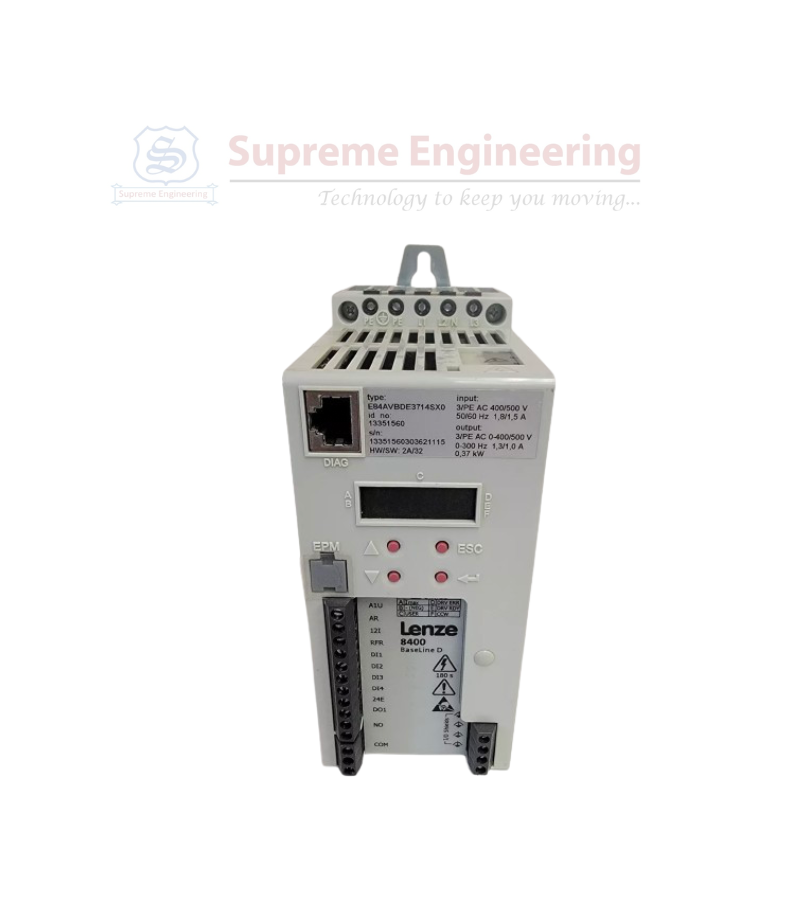

Lenze E84AVSCE3714SXO VFD

Lenze E84AVSCE3714SXO VFD

The Lenze E84AVSCE3714SXO is a part of the 8400 HighLine series of variable frequency drives (VFD) designed for high-performance motor control in industrial applications. It is engineered to efficiently manage motors, providing advanced control and optimization while reducing energy consumption.

Features

1. Advanced Motor Control: The drive supports multiple control methods, including V/Hz, Sensorless Vector, and Closed-Loop Vector control, offering flexibility for various motor types and applications.
2. Energy Efficiency: It helps reduce energy consumption by adjusting the motor’s speed based on the load requirements, ensuring optimal energy usage.
3. Safety Features: The drive incorporates safety features like Safe Torque Off (STO) to prevent the motor from unintentionally starting during maintenance.
4. Flexible Communication: Multiple communication options (EtherCAT, PROFIBUS, CANopen, Modbus TCP) enable seamless integration with automation systems for remote monitoring and control.
5. Rugged and Reliable: Built for demanding industrial environments, it has a robust and compact design, making it suitable for a variety of industrial applications.
6. User-Friendly Interface: Equipped with an easy-to-navigate interface, it simplifies programming, diagnostics, and system setup.
7. Built-in Protection: It includes protection against common faults such as overload, short circuits, overcurrent, and overheating, ensuring the reliability of the system.
8. Compact Design: Despite its high power rating, the drive features a compact and space-saving design for easy installation in control panels or enclosures.

How It Works

The Lenze E84AVSCE3714SXO controls the speed and torque of motors through the adjustment of the frequency and voltage supplied to the motor. Here’s how it works:

1. Power Conversion: The drive receives three-phase AC power, then converts it into variable-frequency AC output. This output is supplied to the motor, allowing for speed and torque control.
2. Control Modes:
   • V/Hz Control: Provides a constant ratio between voltage and frequency, suitable for simpler applications with minimal load fluctuations.
   • Sensorless Vector Control: Adjusts motor performance based on internal algorithms, providing higher precision without requiring external sensors.
   • Closed-Loop Vector Control: Uses feedback from the motor for real-time adjustments, delivering the highest level of motor control, ideal for variable loads.
3. Communication and Integration: The drive supports various communication protocols, including EtherCAT, PROFIBUS, CANopen, and Modbus TCP, for integration into automation systems and remote control.
4. Energy Saving: The drive dynamically adjusts motor speed to match process demands, minimizing energy waste and ensuring efficient operation, especially in applications like pumps, fans, and conveyors.
5. Safety Functions: The drive has built-in safety functions like Safe Torque Off (STO), which ensures that the motor will not unintentionally restart during service, improving operational safety.
6. Monitoring and Diagnostics: The drive allows for constant monitoring of system health, providing diagnostic feedback and helping in predictive maintenance.

Applications

The Lenze E84AVSCE3714SXO is ideal for industrial applications that require high-performance motor control, including:

• Material Handling Systems
• Pumps and Fans
• Conveyor Systems
• HVAC (Heating, Ventilation, and Air Conditioning)
• Automated Production Lines
• Packaging Machines

With its ability to integrate into existing automation systems and deliver high energy efficiency, Lenze E84AVSCE3714SXO is an excellent solution for a variety of motor-driven applications, helping industries reduce energy consumption while maintaining optimal performance.
