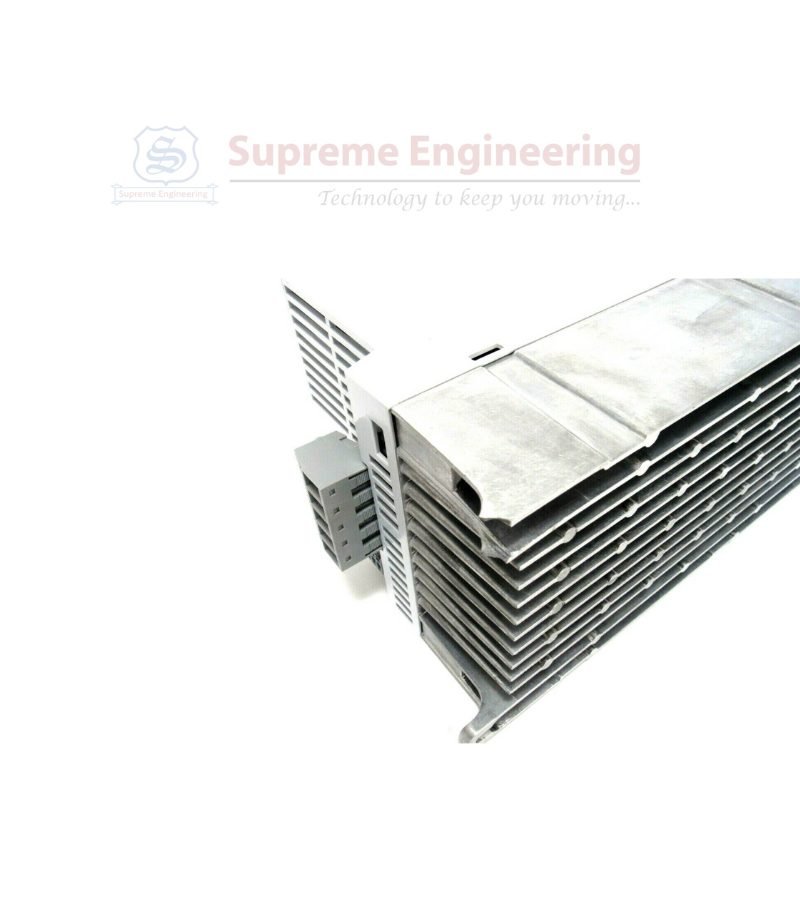

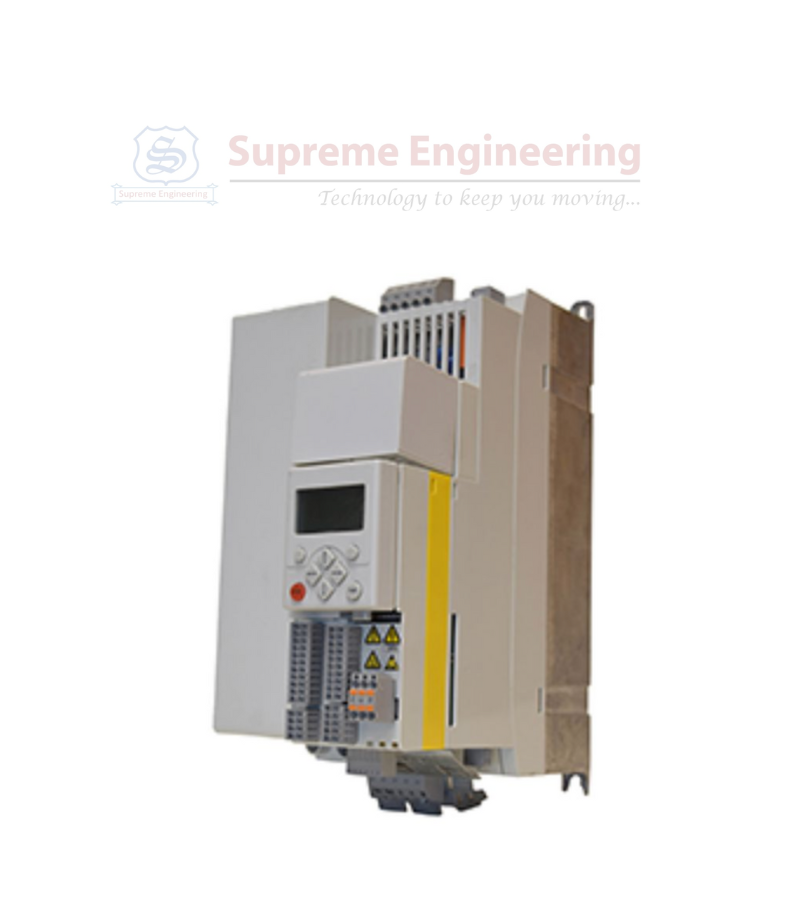

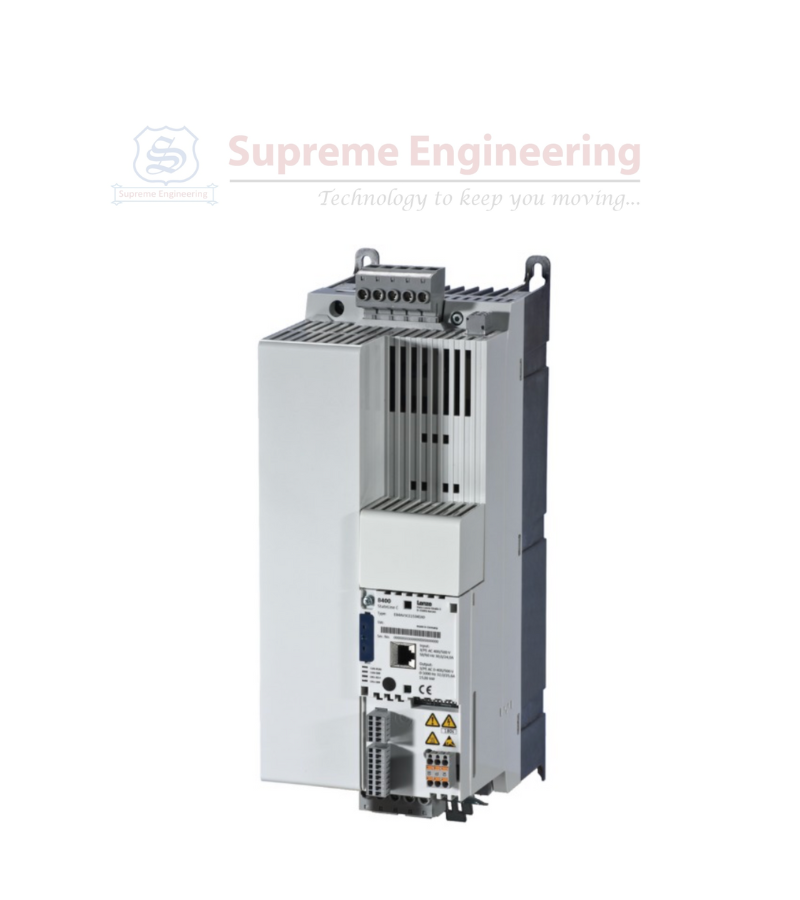

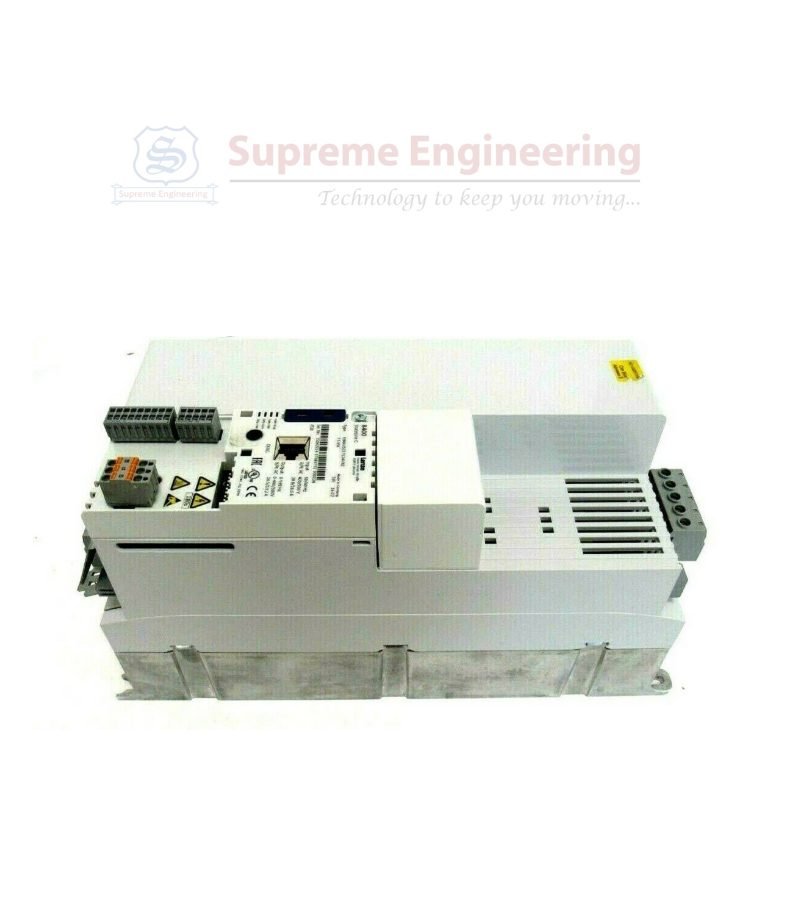

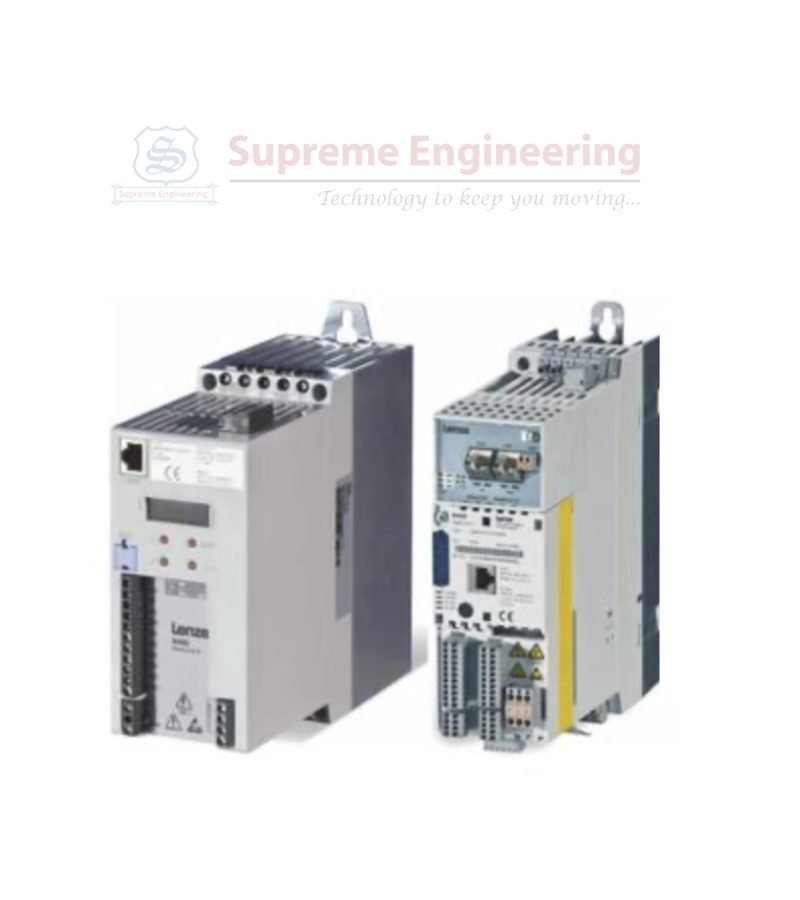

Lenze E84AVSCE7524VX0

Lenze E84AVSCE7524VX0 VFD

The Lenze E84AVSCE7524VX0 is a variable frequency drive (VFD) from the Lenze 8400 HighLine series, designed to control and optimize the performance of industrial motors. It provides precise motor speed and torque control while being highly efficient, reliable, and versatile for various applications in industrial automation.

Features

1. Flexible Motor Control: The drive supports various motor types and control modes, including V/Hz, sensorless vector control, and closed-loop vector control, offering flexibility in different applications.
2. High Efficiency: Designed to optimize motor performance and reduce energy consumption, which helps lower operational costs.
3. Safety Features: Equipped with Safe Torque Off (STO) functionality to ensure safe operation and meet safety standards.
4. Compact and Robust Design: The unit is compact, providing efficient performance while taking up minimal space, ideal for environments where space is limited.
5. Advanced Communication Capabilities: Supports multiple industrial protocols, such as PROFIBUS, Ethernet, and CANopen, enabling seamless integration into existing control systems.
6. Ease of Use: Features a user-friendly interface for easy programming and configuration, simplifying the setup process.
7. Comprehensive Protection: Offers overload, overcurrent, overvoltage, and temperature protection to ensure stable and reliable performance.
8. Real-time Diagnostics: Equipped with diagnostic functions for real-time monitoring of system performance and faults.
9. Energy Savings: Optimized for energy efficiency, particularly with variable-speed operations, which reduces overall energy consumption.
10. Dimensions (H x W x D): Typically compact, suited for tight spaces

How It Works

The Lenze E84AVSCE7524VX0 works as a variable frequency drive (VFD), controlling the speed and torque of electric motors by adjusting the frequency and voltage supplied to the motor. Here’s how it operates:

1. Power Conversion: The drive converts incoming AC power into a variable-frequency AC output, adjusting both voltage and frequency to match the motor’s operating requirements.
2. Control Modes:
   • V/Hz Control: Maintains a constant ratio of voltage to frequency for basic motor control, typically used in simpler applications.
   • Sensorless Vector Control: Uses software algorithms to adjust the motor’s speed and torque without the need for external sensors, allowing for smoother operation and better energy efficiency.
   • Closed-Loop Vector Control: Uses feedback from the motor to fine-tune its performance, providing precise speed and torque control, which is especially useful in demanding industrial applications.
3. Communication and Integration: The drive can be integrated into larger automation systems through various industrial communication protocols like PROFIBUS, Ethernet, and CANopen. This allows for easy integration into complex systems, remote monitoring, and system diagnostics.
4. Safety and Protection: The drive monitors critical parameters such as temperature, current, and voltage to prevent overheating, overcurrent, or overvoltage. It also provides a Safe Torque Off (STO) function to ensure safety during maintenance or emergencies.
5. Energy Efficiency: By adjusting motor speed according to load requirements, the VFD reduces energy usage, particularly in systems that do not need to run at full speed continuously.

Applications

The Lenze E84AVSCE7524VX0 is suitable for various industrial applications that require precise control of motor speed and torque, including:

• Conveyor Systems
• HVAC Systems
• Pumps and Fans
• Material Handling Equipment
• Packaging Machines
• Automated Assembly Lines

Lenze E84AVSCE7524VX0 versatility, combined with high performance and energy efficiency, makes it an ideal choice for a wide range of industries, from manufacturing to energy management.
