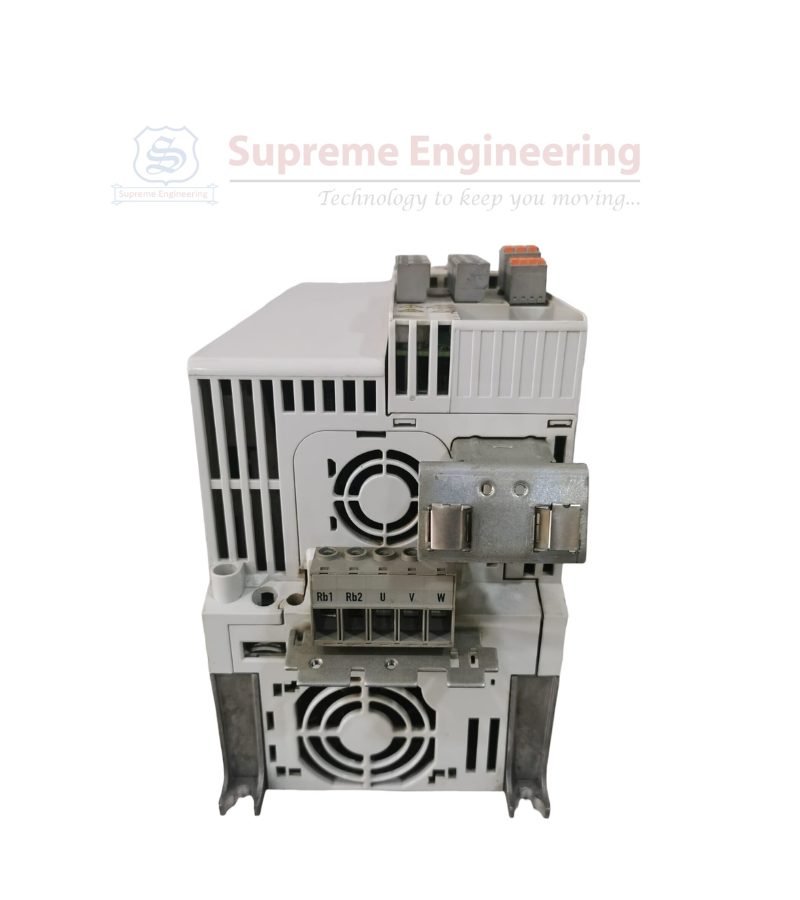

Lenze E84AVTCE7514SXO VFD

Lenze E84AVTCE7514SXO VFD

The Lenze E84AVTCE7514SXO is a variable frequency drive (VFD) from Lenze’s 8400 HighLine series. It is designed to control and optimize motor speed and torque in various industrial applications. This drive offers precise control and energy-efficient operation for high-performance motor-driven systems.

Features

1. Flexible Motor Control: Supports a wide range of motor types and advanced control modes, offering flexibility in different industrial applications.
2. High Efficiency: Optimized to minimize energy consumption while providing high performance, helping reduce operational costs.
3. Safety Functions: Equipped with Safe Torque Off (STO) for enhanced safety and compliance with industrial standards.
4. Compact and Robust: Designed to be compact and durable, suitable for space-constrained environments while ensuring long-term reliability.
5. Advanced Communication: Supports multiple industrial communication protocols like PROFIBUS, Ethernet, and CANopen for easy integration into existing control systems.
6. User-Friendly Interface: Simplifies configuration and operation with an intuitive user interface and easy-to-access programming options.
7. Built-in Protection: Offers protection against overload, short-circuit, overcurrent, overvoltage, and overheating to ensure stable performance and reliability.
8. Energy Saving: Adjusts motor speed according to load requirements to optimize energy usage and improve overall system efficiency.

How It Works

The Lenze E84AVTCE7514SXO operates as a variable frequency drive (VFD), which controls the speed and torque of an electric motor by adjusting the frequency and voltage of the electrical supply. Here’s how it works:

1. Power Conversion: The VFD converts AC power into variable-frequency AC output, adjusting both the voltage and frequency based on the motor’s requirements.
2. Control Modes:
   • V/Hz Control: Maintains a constant ratio between voltage and frequency, suitable for applications that require simple control of motor speed.
   • Sensorless Vector Control: Uses algorithms to control the motor’s speed and torque without the need for feedback sensors, providing more precise control and smoother operation.
   • Closed-Loop Vector Control: Incorporates feedback from the motor for even more precise control, ensuring optimal performance in applications with varying load conditions.
3. Communication and Integration: The drive integrates into larger automation systems through communication protocols like PROFIBUS, Ethernet, and CANopen. These features allow remote monitoring, diagnostics, and seamless control integration.
4. Safety and Protection: It has built-in safety features, including Safe Torque Off (STO) functionality, which ensures the motor can be safely stopped during maintenance or emergencies. The drive also protects against issues like overload, overvoltage, and overcurrent.
5. Energy Efficiency: By adjusting the motor’s speed to meet demand, the VFD minimizes energy waste, providing energy savings in variable-speed applications.

Applications

The Lenze E84AVTCE7514SXO is ideal for various industries and applications, including:

• Conveyor Systems
• HVAC Systems
• Pumps and Fans
• Material Handling Equipment
• Automated Production Lines
• Packaging Machinery

Lenze E84AVTCE7514SXO is  advanced control, safety features, and energy-saving capabilities make it an excellent choice for industrial motor control systems across diverse sectors.
