Lenze ESMD402L4TXA

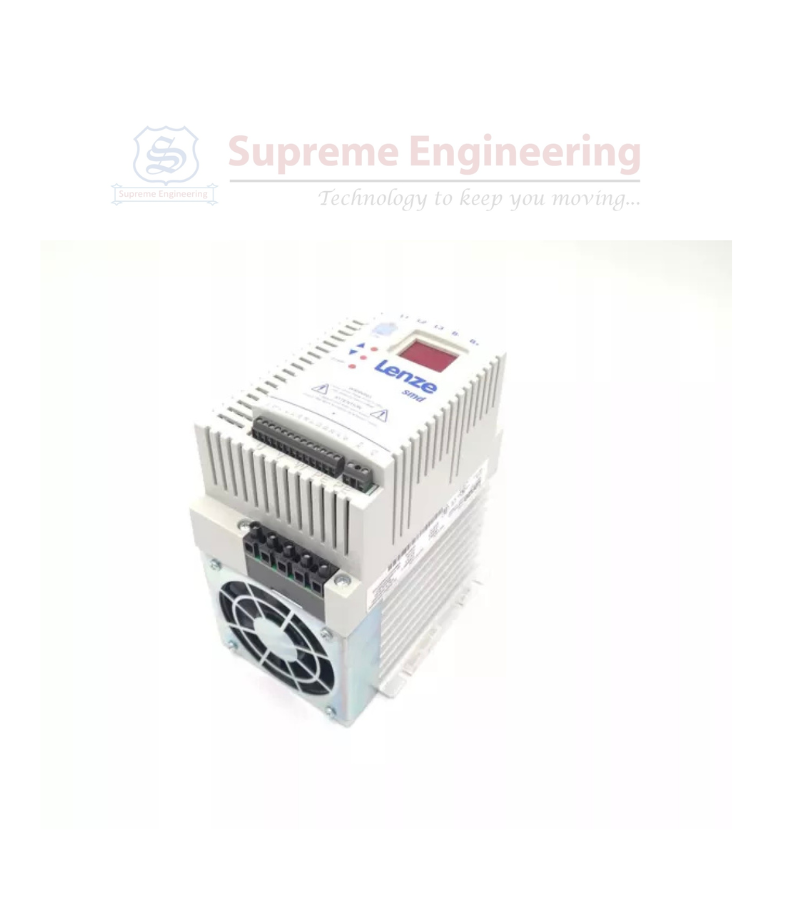

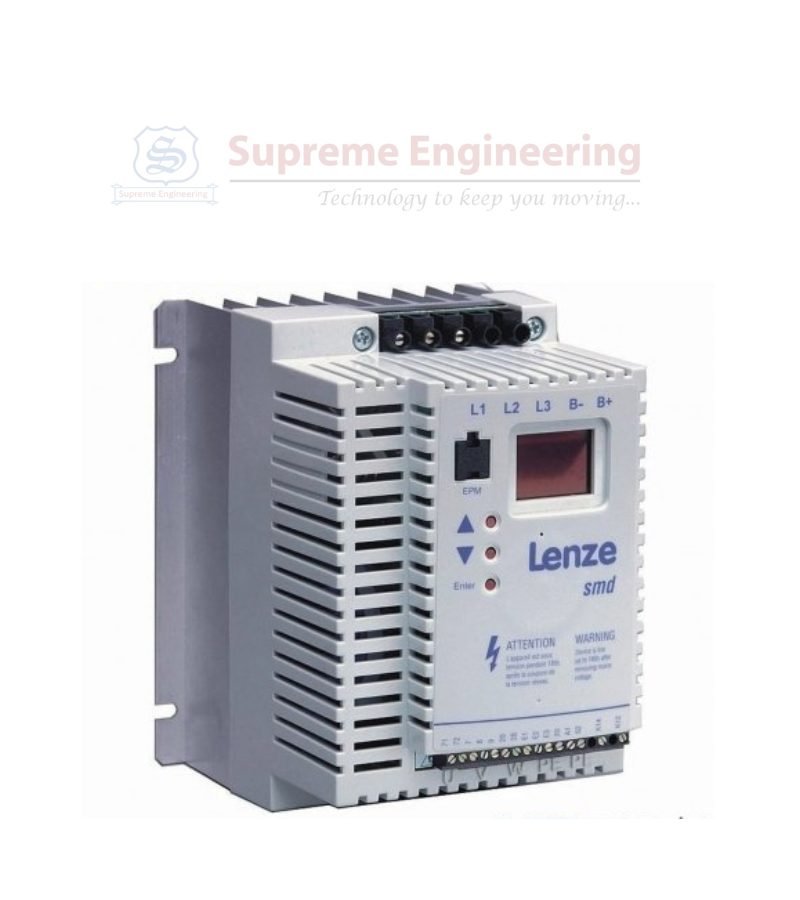

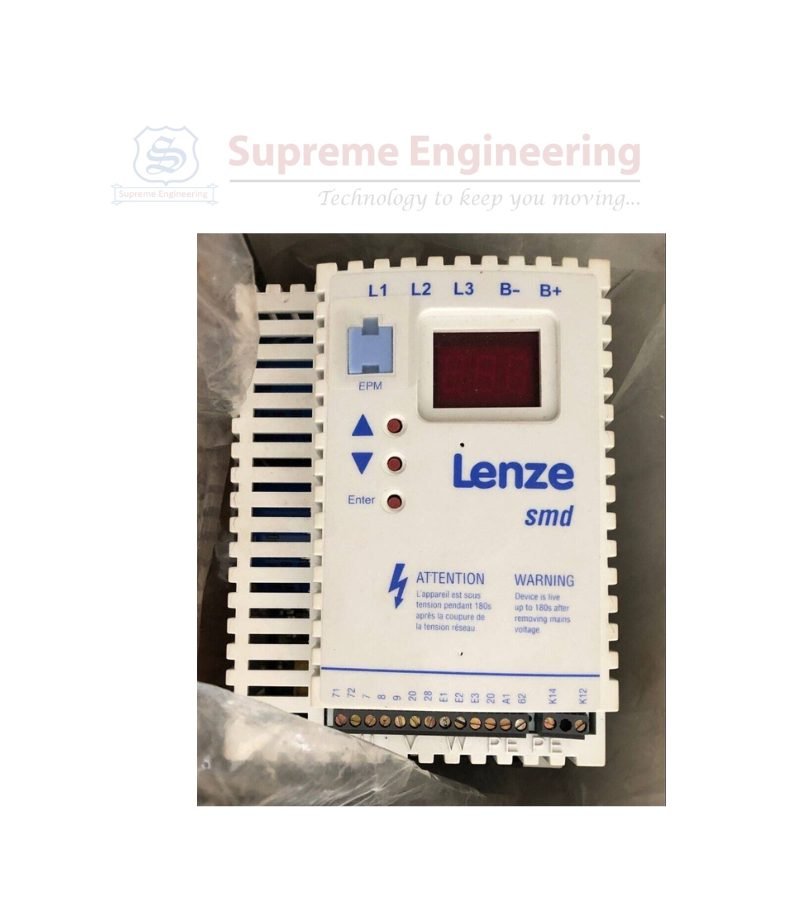

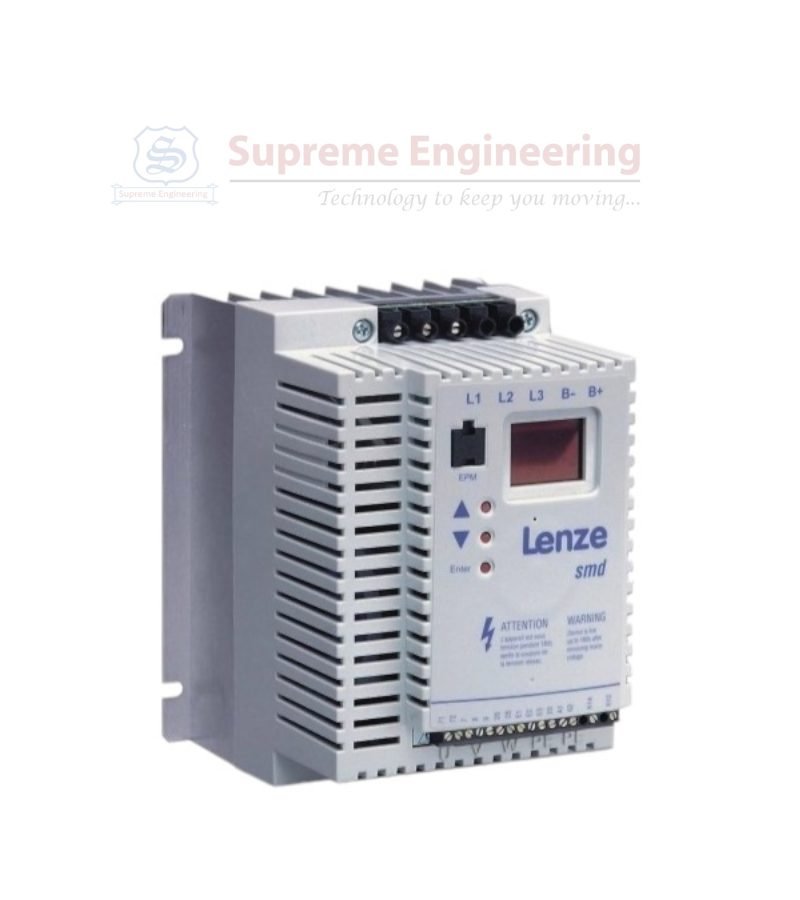

Lenze ESMD402L4TXA Frequency Inverter

The Lenze ESMD402L4TXA is a frequency inverter from the Lenze SMVector series, built for flexible and efficient motor control in industrial and commercial applications. This inverter is renowned for its compact design, user-friendly operation, and robust performance in demanding environments.

Specifications

• Control Methods: V/Hz control and sensorless vector control
• Enclosure Rating: IP31 (NEMA 1)
• Ambient Operating Temperature: -10°C to 50°C
• Communication: Built-in Modbus RTU
• Overload Capacity: 150% of rated current for 1 minute

Features

1. Compact and Versatile: Slim design suitable for space-constrained control panels.
2. Advanced Motor Control: V/Hz and sensorless vector control provide precise and reliable motor performance.
3. Energy Efficiency: Optimizes energy consumption based on load requirements, reducing operational costs.
4. Comprehensive Protection: Equipped with safeguards against overload, short circuits, and overheating.
5. Ease of Use: Simple keypad interface for quick configuration and operation.
6. Wide Application Scope: Suitable for pumps, fans, conveyors, mixers, and other motor-driven equipment.
7. Integrated Communication: Built-in Modbus RTU enables seamless integration with automation systems.
8. Flexible Installation: Modular design supports various mounting configurations.

How It Works

The Lenze ESMD402L4TXA operates by controlling the speed and torque of three-phase AC motors through variable frequency and voltage adjustments. Its sensorless vector control enables accurate motor performance without requiring additional feedback devices like encoders.

This inverter is designed for continuous operation in diverse industrial environments, ensuring smooth motor control under varying loads. The built-in Modbus RTU protocol facilitates integration with industrial automation systems, allowing for remote monitoring and efficient control. Additionally, the inverter’s protective features ensure reliable operation by preventing damage from overcurrent, overheating, or other electrical faults.

Its compact size, energy efficiency, and versatile functionality make it ideal for optimizing motor-driven systems across a wide range of industries.
