Lenze EVF9322-EV

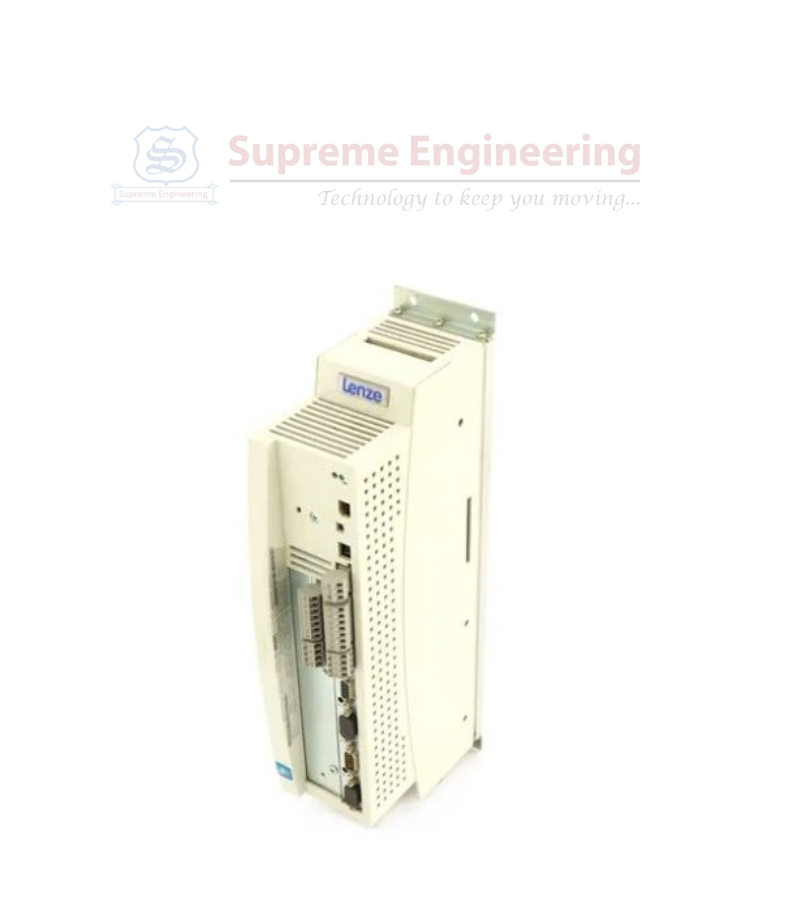

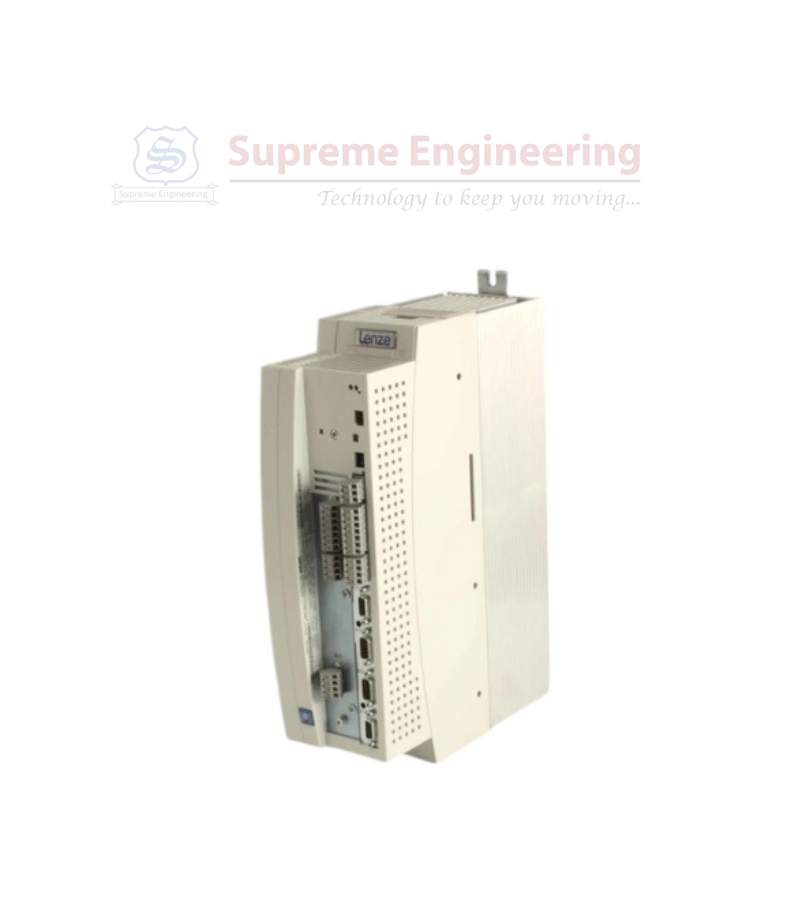

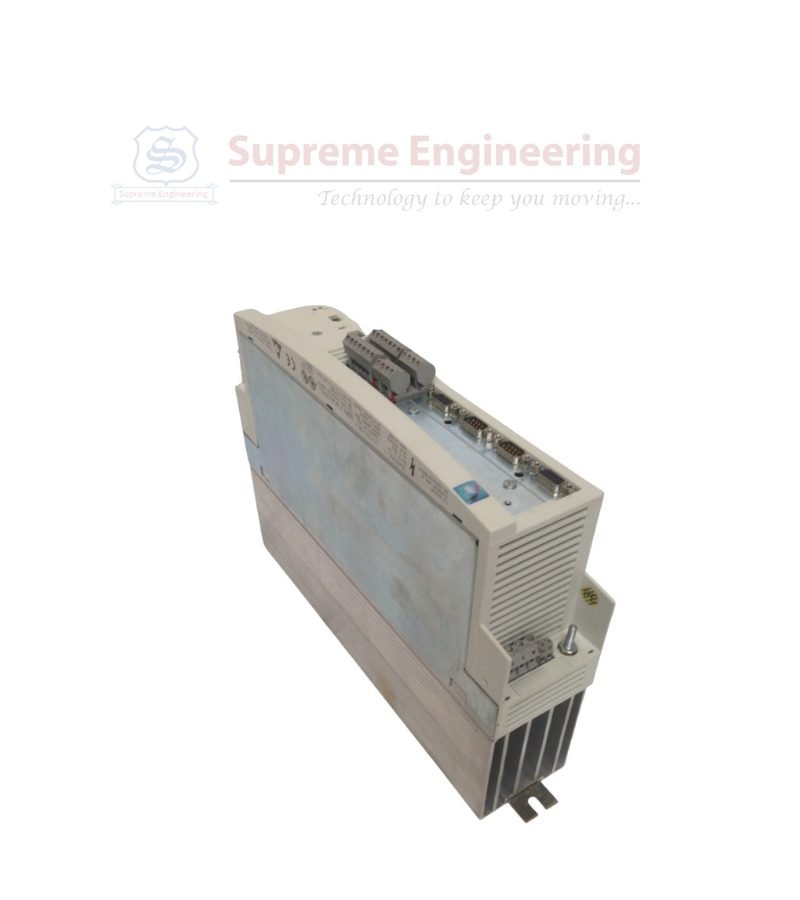

Lenze EVF9322-EV Frequency Inverter

The Lenze EVF9322-EV is part of Lenze’s 9300 series of frequency inverters, designed for versatile and reliable control of AC asynchronous motors. This compact and efficient inverter is ideal for applications requiring variable speed control, torque management, and energy efficiency.

How It Works:

1. Variable Frequency Drive (VFD) Technology: The Lenze EVF9322-EV adjusts the frequency and voltage supplied to the motor, enabling precise speed and torque control. This allows the motor to operate at optimal performance levels, tailored to the application’s requirements.
2. Control Modes:
   • V/f (Voltage/Frequency) Control: Basic motor control for steady speed and simple applications.
   • Vector Control: Ensures dynamic torque response and stability, even at low speeds.
   • Closed-Loop Operation (optional with encoder): Provides precise feedback for accurate motor control in demanding tasks.
3. Programmability: Configurable parameters let users customize the drive to suit various industrial processes.

Key Features:

1. Compact Design: Slim and space-saving, the drive is easy to install in crowded control panels.
2. Dynamic Braking: A built-in braking chopper allows rapid deceleration with external braking resistors, enhancing operational efficiency in dynamic applications.
3. Integrated Motor Protection: Protects against common issues like overcurrent, overvoltage, undervoltage, and overheating to ensure long-lasting performance.
4. Fieldbus Communication: Supports communication protocols like PROFIBUS or CANopen for seamless integration into modern industrial automation systems.
5. Energy Optimization: Automatically adjusts motor performance to minimize energy consumption and operating costs.
6. Cooling System: Effective thermal management ensures consistent performance in demanding environments.
7. Expandable Functionality: Modular design allows for optional expansions to include advanced communication or control features.

Specifications Overview (Approximate):

• Power Range: Designed for small-to-medium-sized motors.
• Voltage Range: 380–480V three-phase input.
• Frequency Range: Supports up to 400Hz for versatile motor operation.

For detailed technical specifications and operational instructions, refer to consult our technical support. The Lenze EVF9322-EV offers an excellent balance of functionality, reliability, and cost-effectiveness for diverse industrial requirements.
