Lenze EVF9323-EV

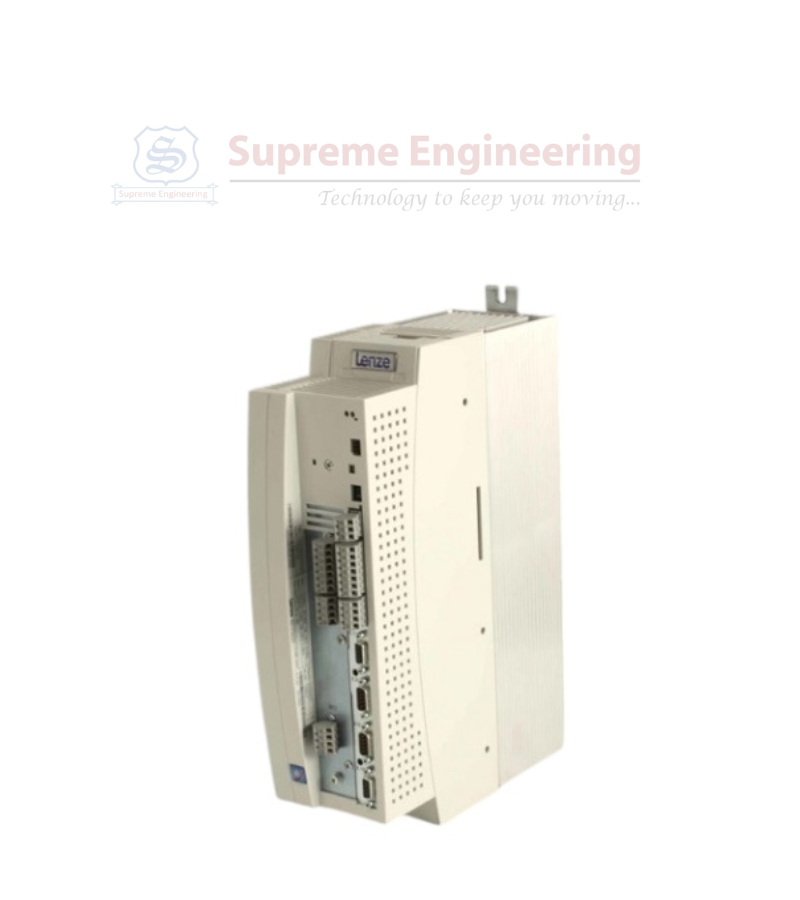

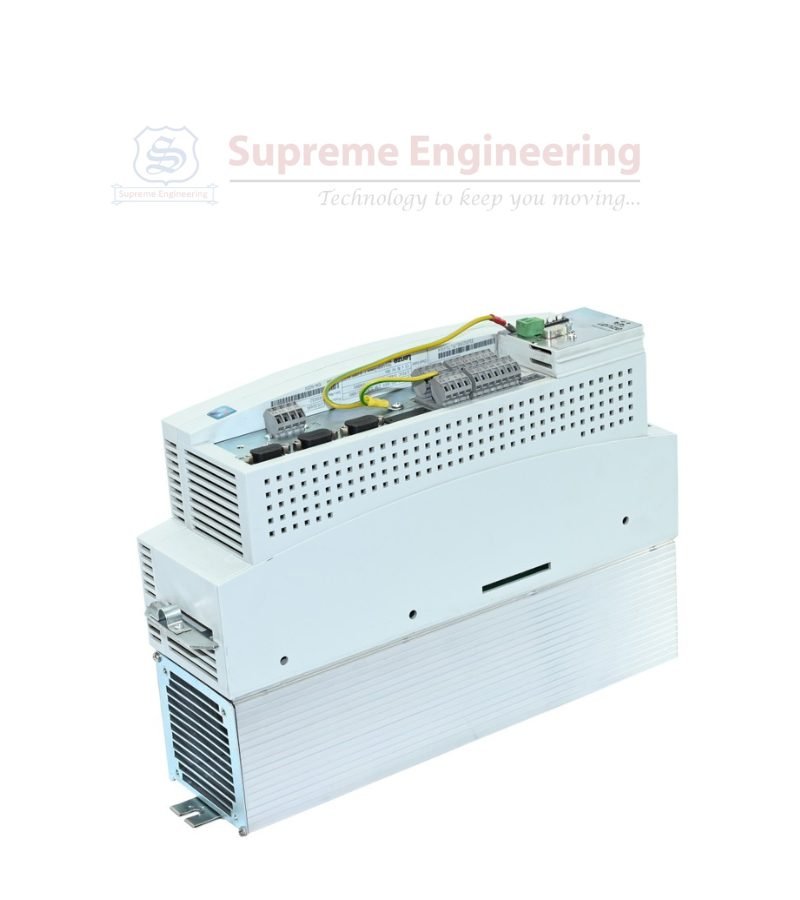

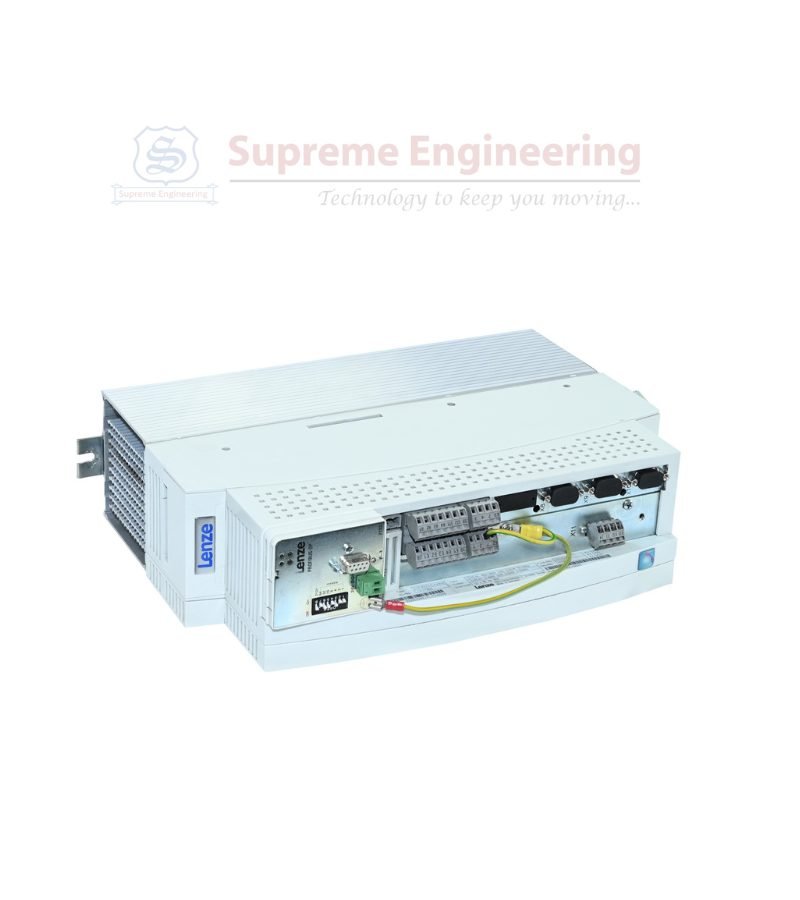

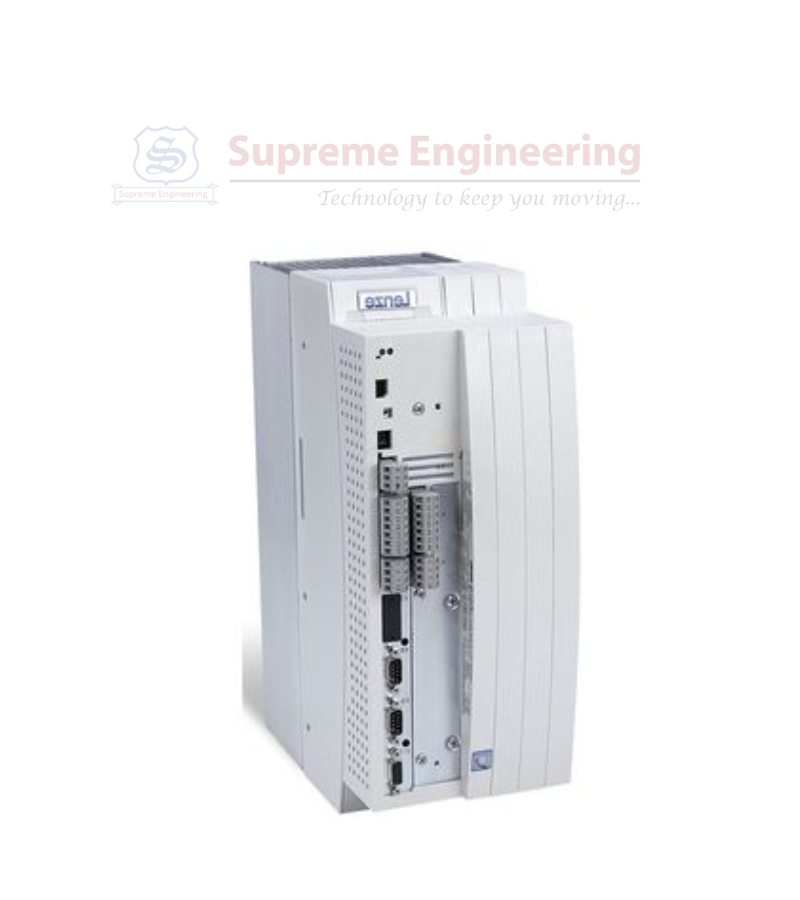

Lenze EVF9323-EV Frequency Inverter

The Lenze EVF9323-EV is part of Lenze’s 9300 series frequency inverters, designed for the efficient and precise control of asynchronous AC motors. It offers a reliable solution for industrial applications requiring variable speed, torque control, and energy-efficient motor operation.

How It Works:

1. Variable Frequency Drive (VFD): The Lenze EVF9323-EV controls the motor’s speed by varying the frequency and voltage of the power supplied. This enables fine-tuned adjustments for diverse tasks, improving performance and reducing wear.
2. Operation Modes:
   • V/f Control (Volts per Frequency): Provides a straightforward method for controlling motor speed in general applications.
   • Vector Control: Ensures high torque accuracy and consistent motor performance across different speeds.
   • Closed-Loop Control: Uses feedback (like encoders) to achieve precise motor control for demanding processes.
3. Programmability: Preprogrammed settings and customizable parameters allow users to optimize the drive for specific industrial needs.

Key Features:

1. Compact and Space-Saving Design: Slim profile makes it easy to install in control cabinets.
2. Dynamic Braking Capability: Built-in braking chopper allows for rapid deceleration when used with external braking resistors.
3. Robust Motor Protection: Safeguards against conditions such as overvoltage, undervoltage, overcurrent, and overheating.
4. Integrated Communication: Supports fieldbus systems like PROFIBUS and CANopen, enabling seamless integration into industrial automation networks.
5. Energy Optimization: Reduces energy usage by optimizing motor performance according to application requirements.
6. Cooling System: Efficient cooling ensures consistent operation even in demanding environments.
7. Modular Expandability: Additional modules can be added to enhance functionality, such as advanced communication or safety features.

Specifications Overview

• Power Range: Suited for small-to-medium motors.
• Voltage Range: 380–480V three-phase input.
• Frequency: Typically supports a range from 0–400Hz for motor operation.

For precise technical specifications and operational guidelines, refer to consult our technical support team. This drive is designed to balance performance, reliability, and cost-efficiency for a broad range of industrial needs.
