Siemens 6ES7153-1AA03-0XB0

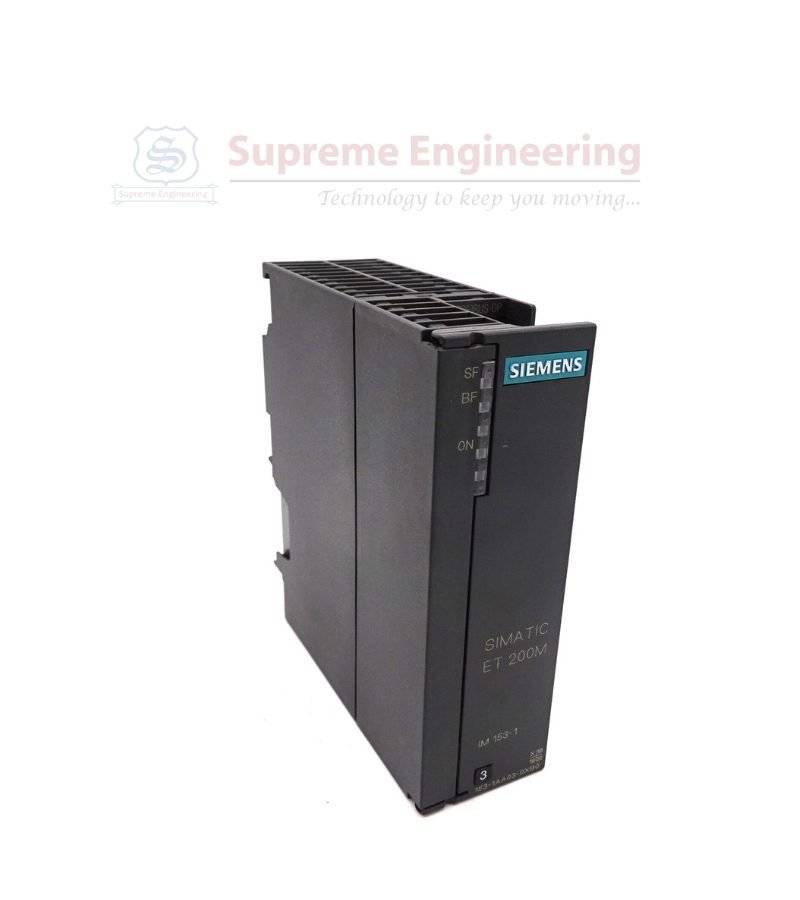

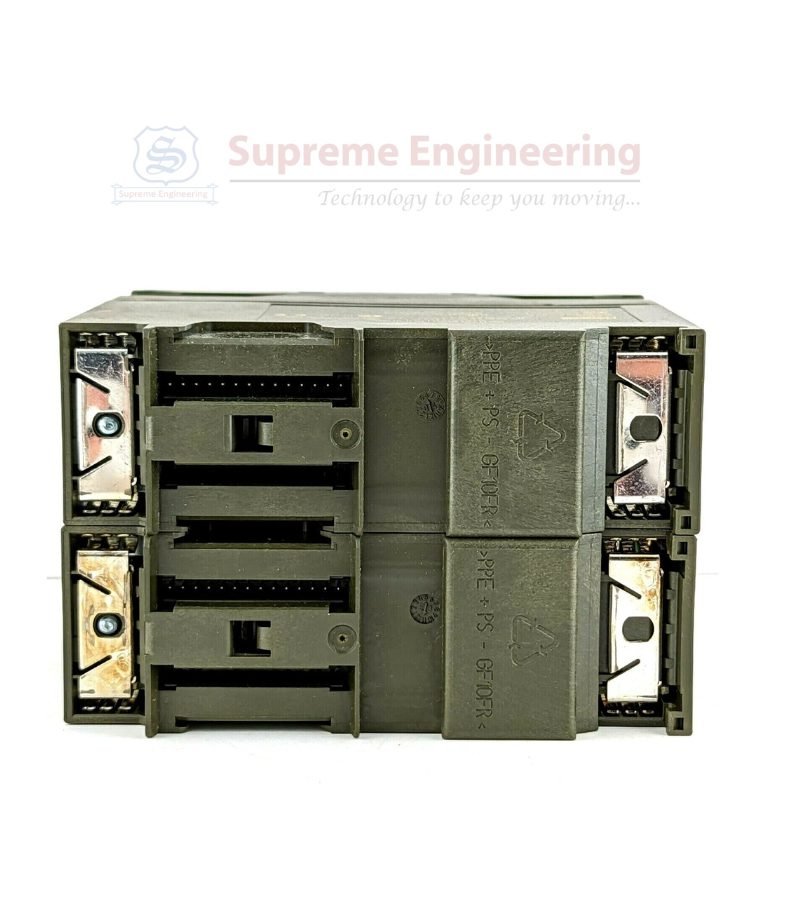

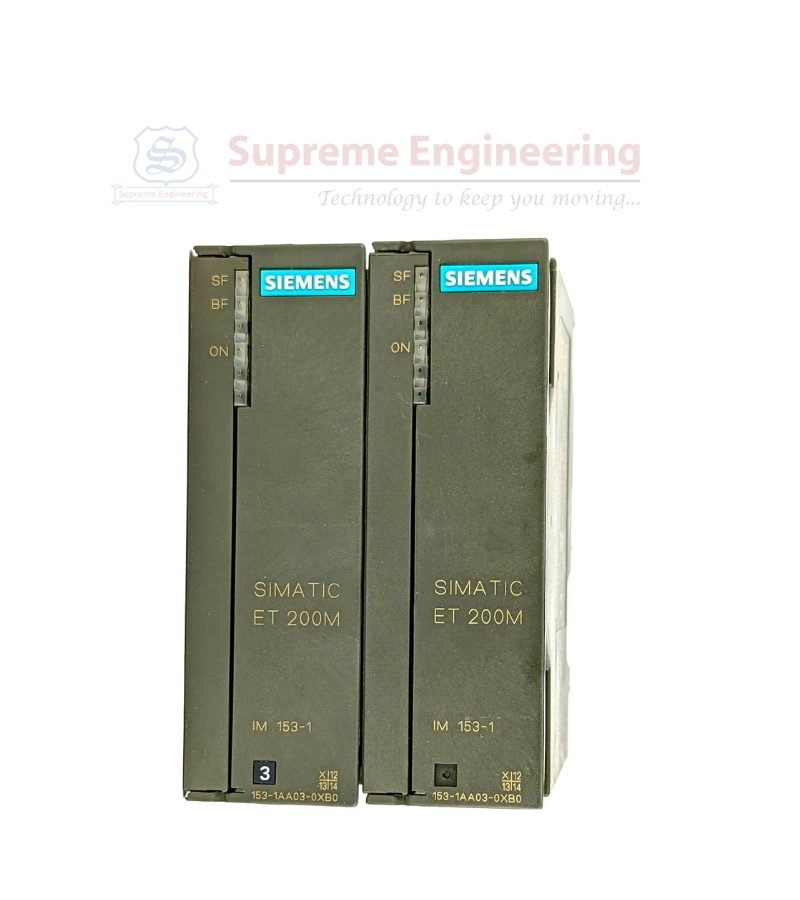

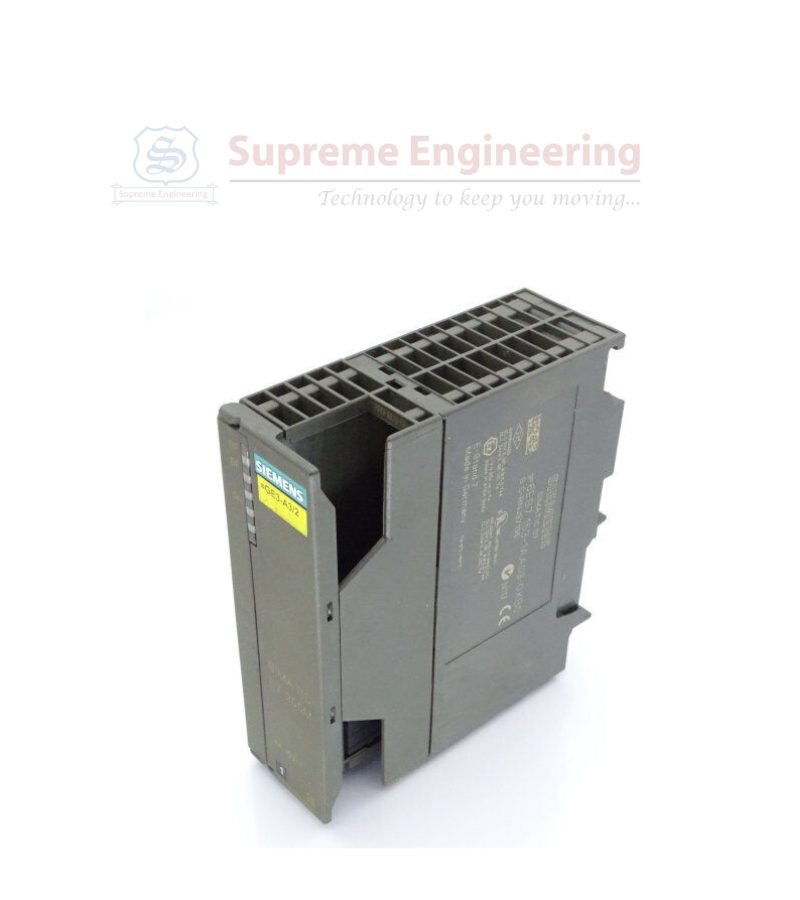

Siemens 6ES7153-1AA03-0XB0 Interface Module

The Siemens 6ES7153-1AA03-0XB0 is a SIMATIC ET 200M IM 153-1 interface module designed for distributed I/O in an automation system. It connects I/O modules to a central controller using a PROFIBUS DP network, making it suitable for flexible and scalable automation tasks in industries such as manufacturing and process control.

Features

1. Distributed I/O Integration: Connects multiple I/O modules to a central controller for modular and distributed control systems.
2. PROFIBUS DP Compatibility: Ensures high-speed communication and real-time data exchange within a networked system.
3. Compact Design: Saves space in control cabinets while supporting up to 8 I/O modules.
4. Diagnostics: LED indicators provide clear status and fault information, simplifying troubleshooting.
5. Flexible Configuration: Adjustable addressing and modular design for scalability in automation systems.
6. Robust Performance: Designed for use in harsh industrial environments, ensuring reliable operation.

How Siemens 6ES7153-1AA03-0XB0 Works

1. Connection to PROFIBUS Network: The IM 153-1 connects to a PROFIBUS DP network, acting as an intermediary between the central controller (e.g., PLC) and distributed I/O modules.
2. Data Handling: It receives commands from the central controller and relays them to the connected I/O modules. Similarly, it collects data from the I/O modules and sends it back to the controller.
3. Modular I/O Setup: Supports up to 8 S7-300 I/O modules, which can include digital and analog input/output modules, making it adaptable to various automation needs.
4. Diagnostics and Monitoring: LED indicators on the module display communication status and error conditions, allowing operators to quickly identify and resolve issues.

This Siemens 6ES7153-1AA03-0XB0 module enhances system scalability, flexibility, and reliability, making it ideal for distributed control in complex automation systems.
