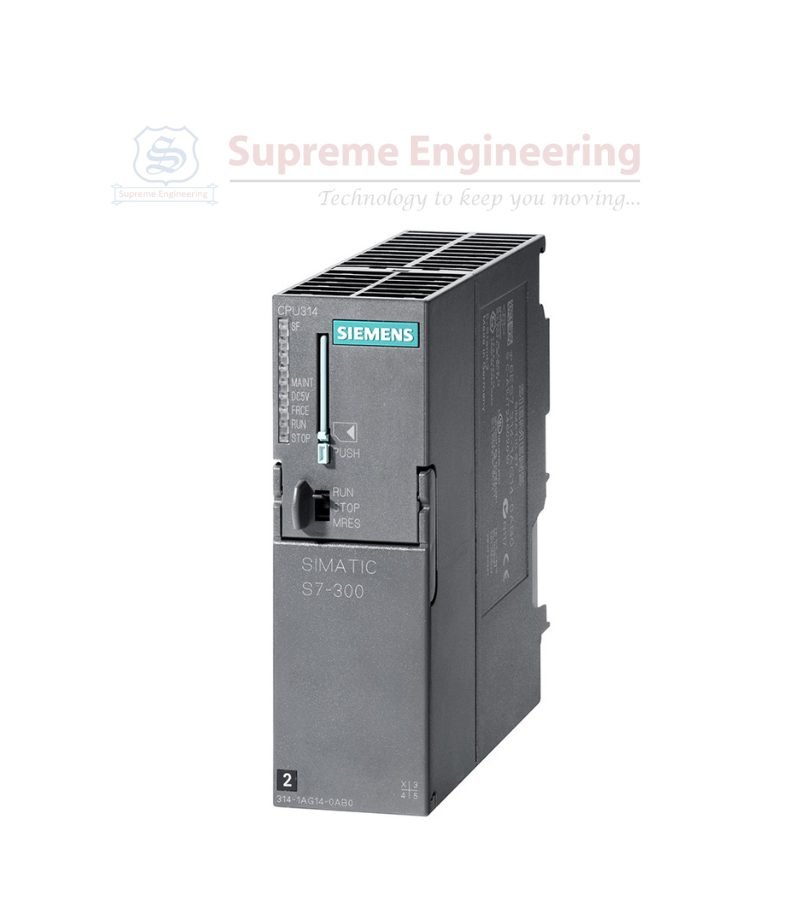

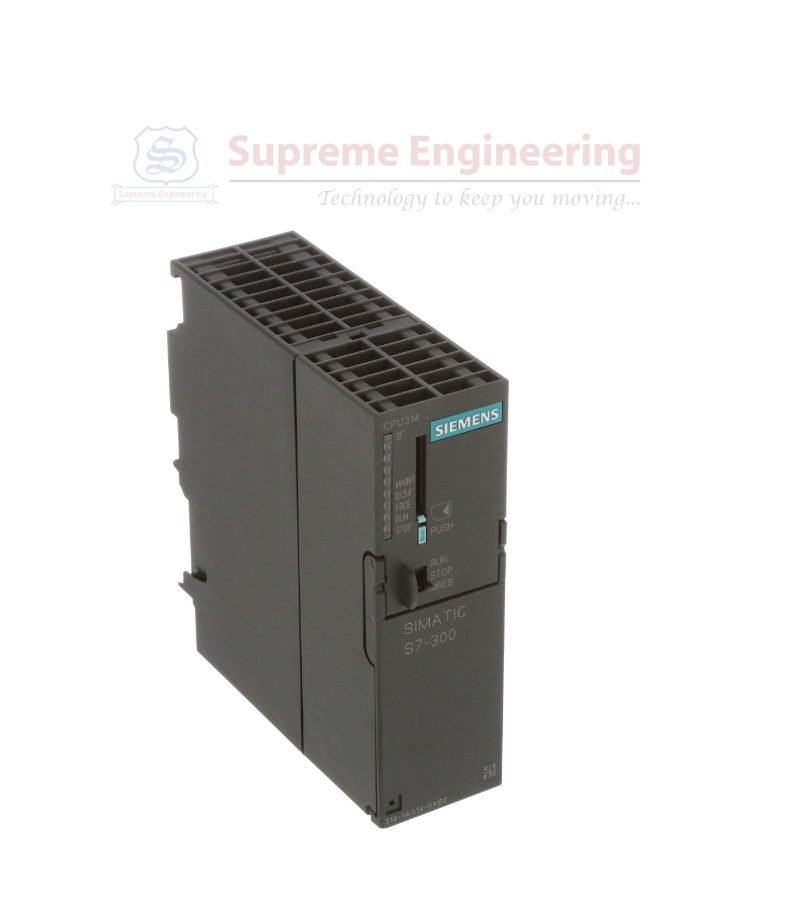

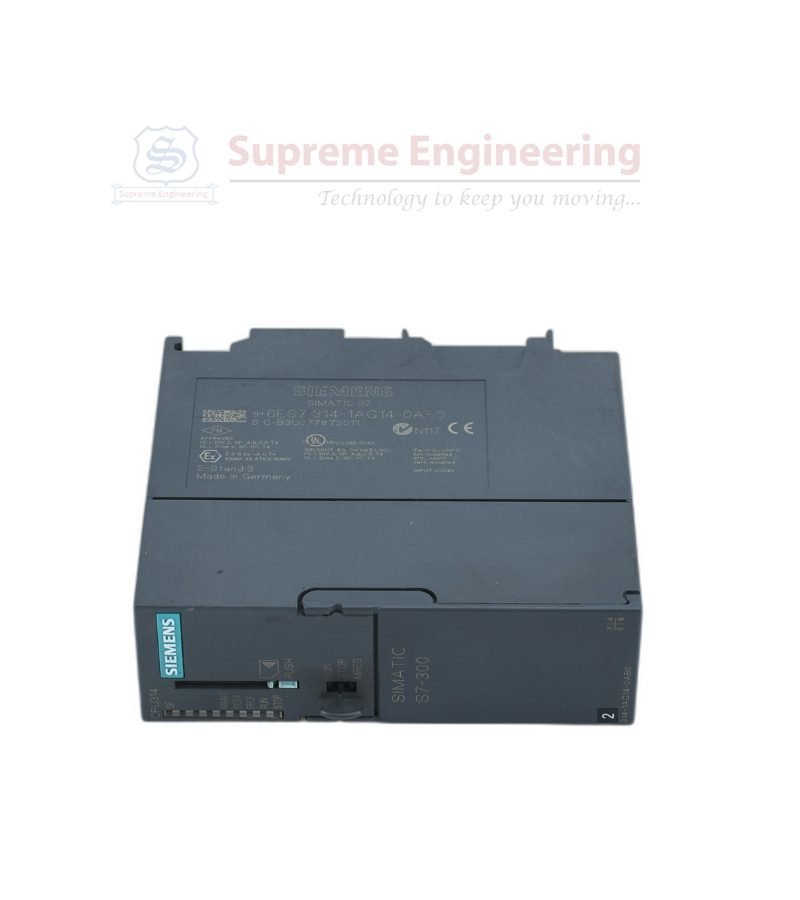

The Siemens 6ES7314-1AG14-0AB0 is a SIMATIC S7-300 CPU 314C-2 DP, a compact and versatile programmable logic controller (PLC) designed for medium-scale automation tasks. This model integrates processing power, communication interfaces, and onboard I/O, making it suitable for complex industrial automation systems.

Features

1. Integrated I/O: Combines digital and analog inputs/outputs for flexible control.
2. PROFIBUS DP Interface: Enables fast communication with decentralized peripherals.
3. High Processing Speed: Handles advanced automation tasks with quick cycle times.
4. Multi-Point Interface (MPI): Facilitates communication with HMI systems and other PLCs.
5. Compact Design: Optimized for control cabinets with space constraints.
6. Scalability: Expandable with additional I/O and functional modules.
7. Diagnostics: Built-in LEDs for status and error monitoring.
8. User-Friendly Programming: Compatible with Siemens’ STEP 7 software.

How It Works

The Siemens 6ES7314-1AG14-0ABO CPU 314C-2 DP serves as the core controller in an automation system, processing input signals, executing logic programs, and managing outputs. Its integrated digital and analog I/O allows for direct connection to sensors and actuators, reducing the need for additional modules.

Example Use Case: In a manufacturing plant:

1. Inputs: Monitors sensors for parameters like temperature, pressure, or position.
2. Processing: Executes programmed logic to determine necessary actions based on the input.
3. Outputs: Activates devices such as motors, valves, or lights based on the logic.

The Siemens 6ES7314-1AG14-0ABO integrated PROFIBUS DP interface ensures seamless communication with distributed peripherals, while the MPI interface supports HMI systems and peer-to-peer communication. This controller is ideal for applications requiring a combination of analog and digital control with reliable and efficient performance.
