Siemens 6ES7321-1BH50-0AA0

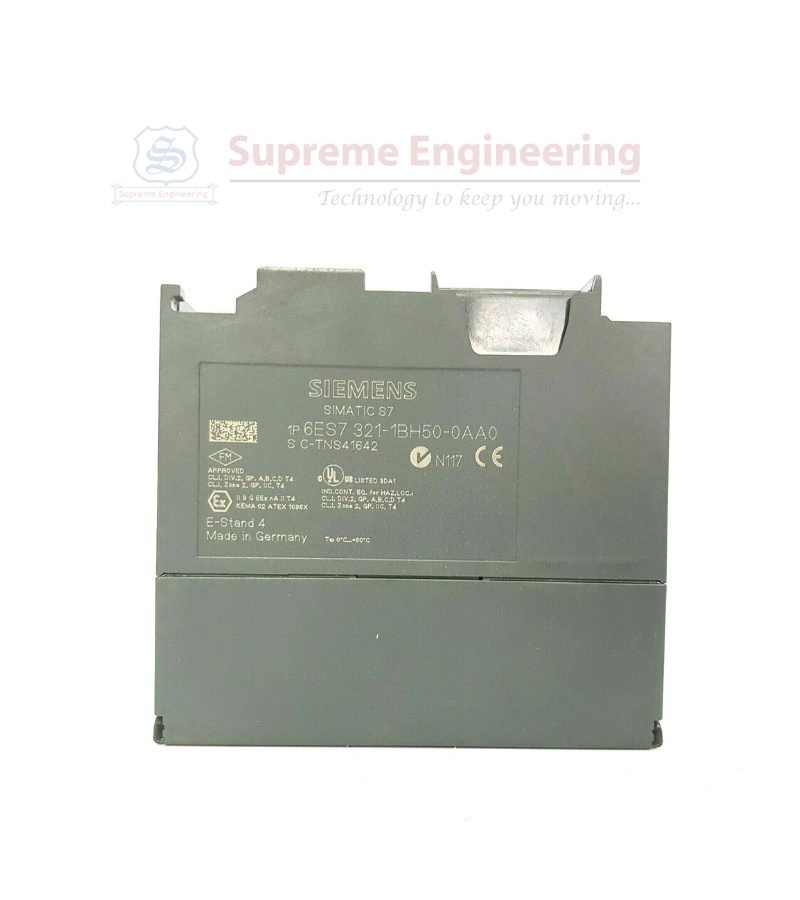

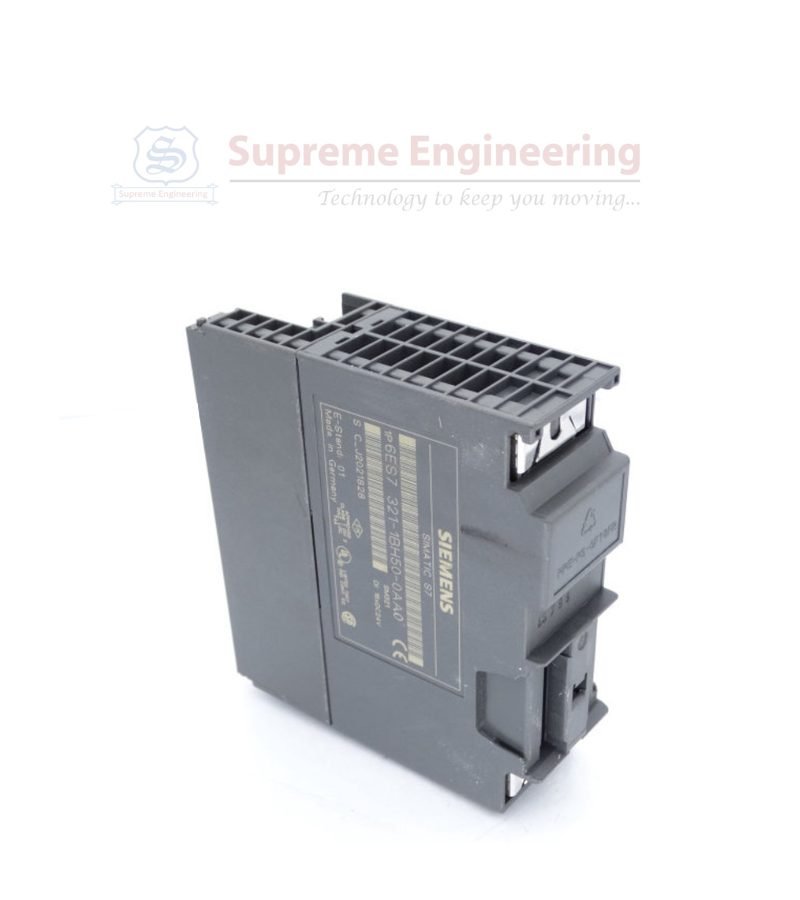

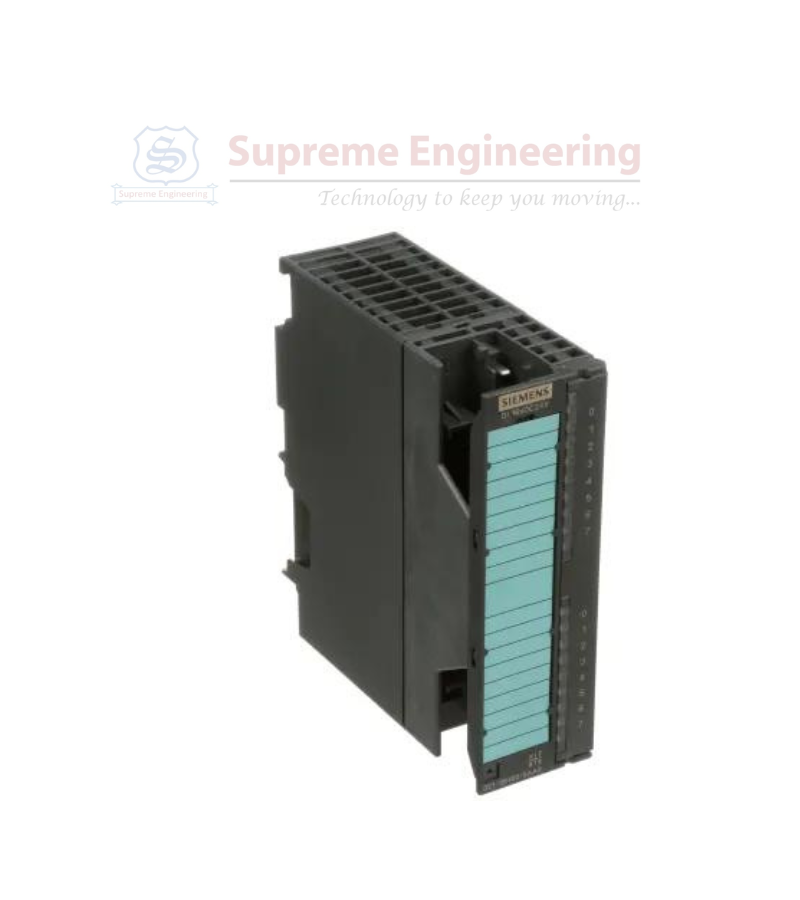

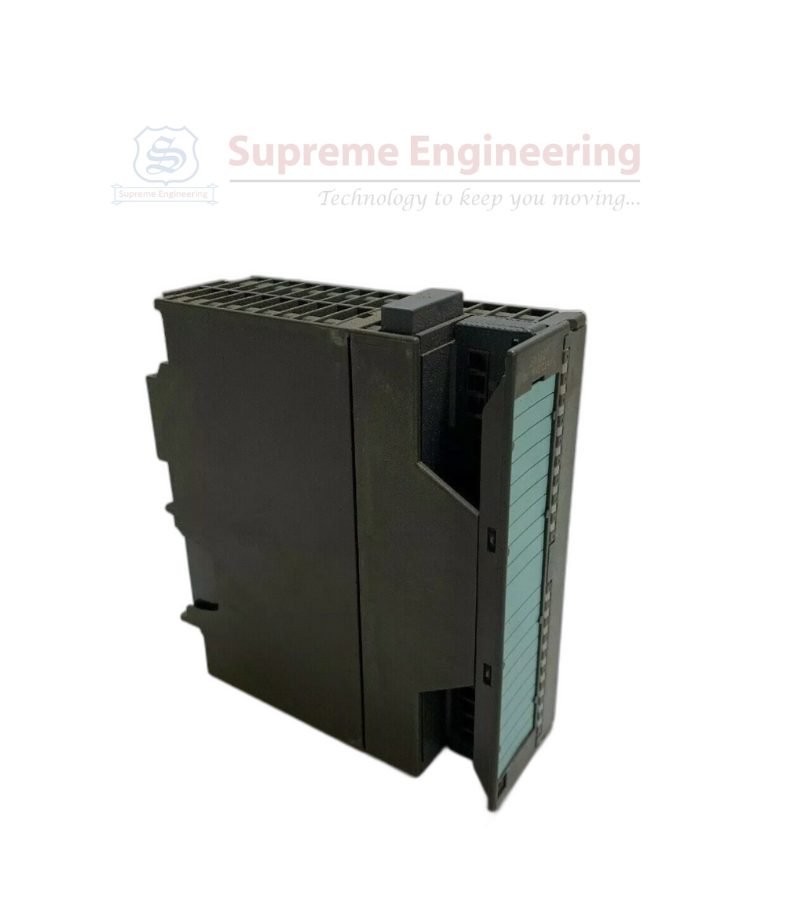

Siemens 6ES7321-1BH50-0AA0 Digital Input Module

The Siemens 6ES7321-1BH50-0AA0 is a Digital Input Module from the SIMATIC S7-300 series, designed for industrial automation applications. This module is used to receive and process digital signals from various field devices like sensors, switches, and buttons, making it an essential part of programmable logic controller (PLC) systems.

Features

1. High Input Capacity: Handles 16 digital inputs, suitable for complex systems.
2. Voltage Compatibility: Operates with 24 V DC for standard automation applications.
3. Fast Signal Processing: Minimal input delay ensures real-time system responses.
4. Electrical Isolation: Protects the PLC system from voltage spikes or faults in the field.
5. Compact Design: Optimized for space-saving installation in S7-300 racks.
6. Diagnostic Capability: Monitors input status and identifies errors for quick troubleshooting.
7. Wide Application: Compatible with a variety of sensors and switches.
8. Durable Build: Designed to perform reliably in harsh industrial environments.

How It Works

The Siemens 6ES7321-1BH50-0AA0 module connects to the S7-300 PLC and interfaces with digital input devices like proximity sensors, pushbuttons, or limit switches. It detects the on/off status of connected devices and transmits this data to the PLC for processing. For example, in an assembly line, it can monitor the status of safety gates or detect the presence of products. The PLC uses the input signals to execute programmed logic, such as activating machinery or generating alerts. Electrical isolation ensures safe operation, while its diagnostic features help maintain system reliability by identifying and resolving faults efficiently.
