Siemens 6ES7322-1BH01-0AA0

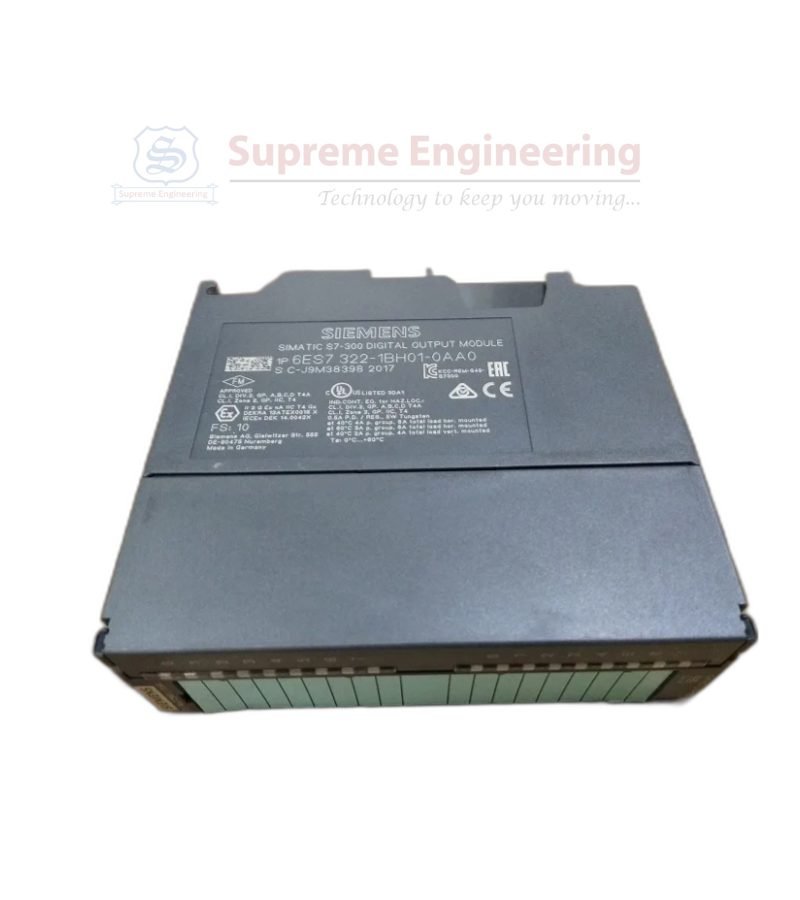

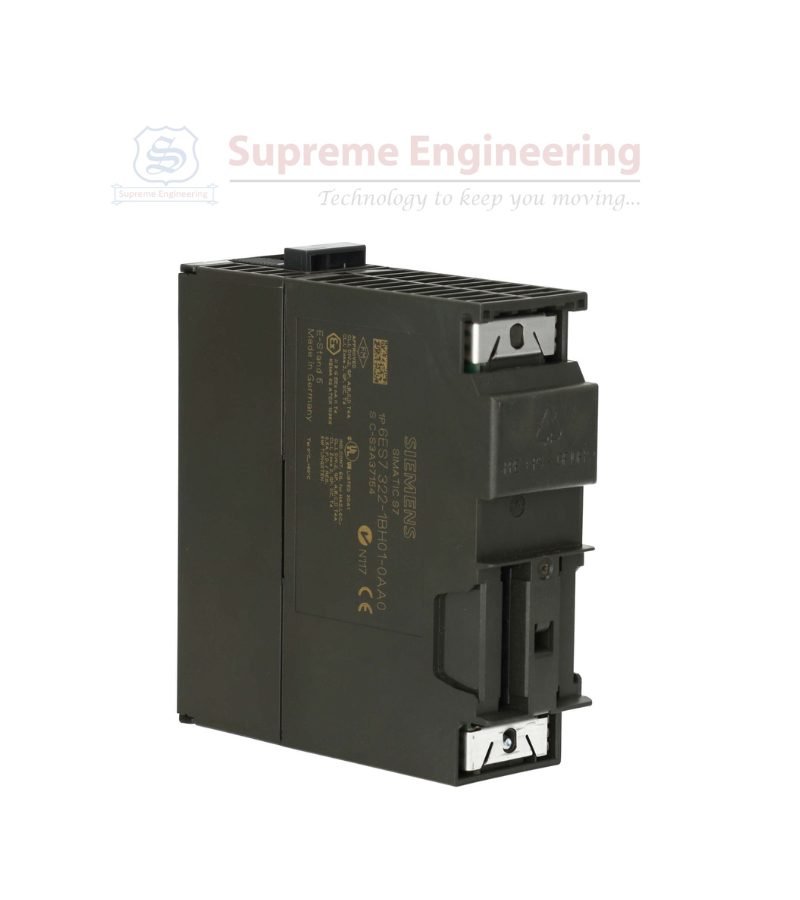

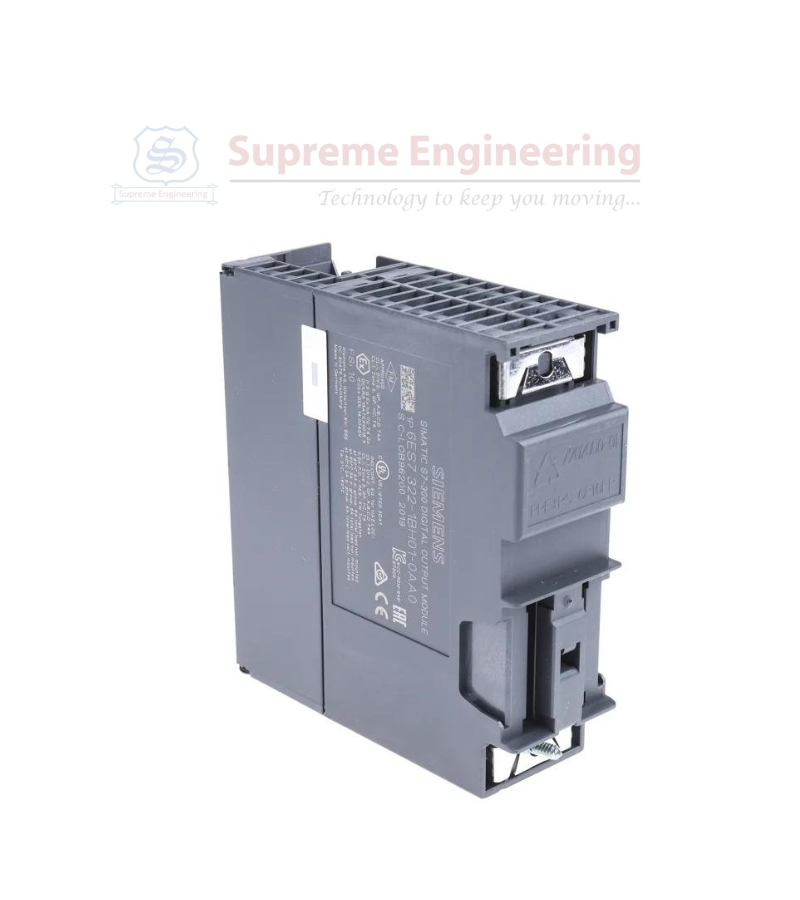

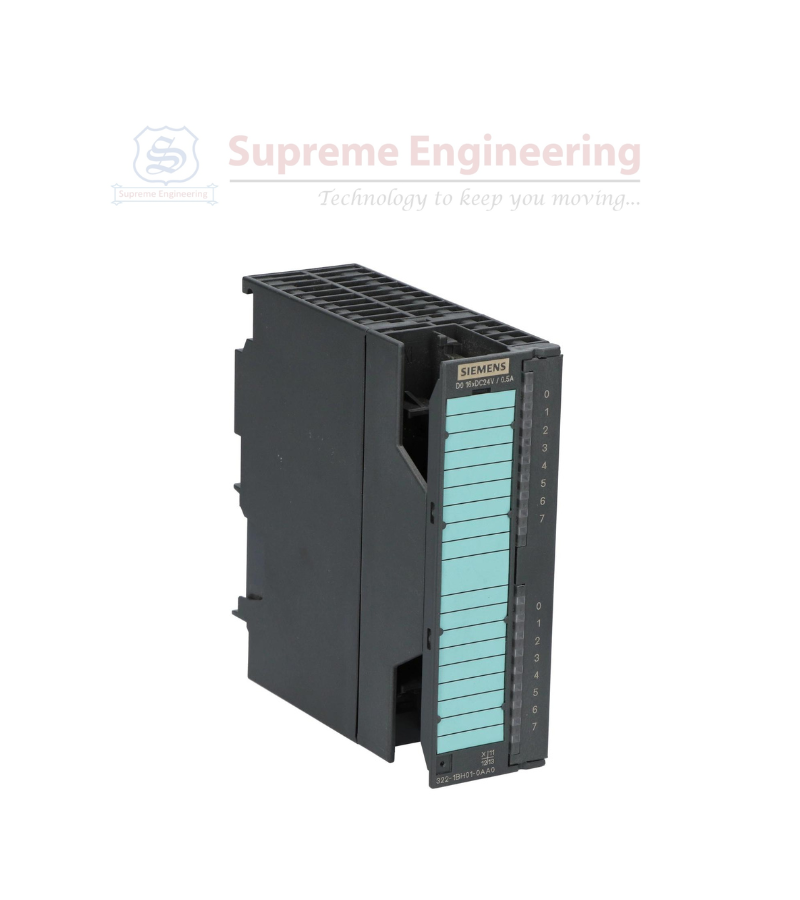

Siemens 6ES7322-1BH01-0AA0 Digital Output Module

The Siemens 6ES7322-1BH01-0AA0 is a Digital Output Module from the SIMATIC S7-300 series. It is designed for controlling external devices by outputting digital signals, providing reliable and precise operation in industrial automation environments.

Features

1. Multiple Outputs: Provides 16 channels for controlling devices such as actuators, lights, and motors.
2. Wide Voltage Compatibility: Supports both AC and DC output, increasing versatility.
3. High Output Current: Capable of handling up to 2 A per channel for demanding applications.
4. Electrical Isolation: Ensures safe operation by isolating output signals from the PLC.
5. Compact Design: Fits seamlessly into S7-300 PLC systems without occupying excessive space.
6. Built-in Diagnostics: Monitors output status and identifies faults for enhanced reliability.
7. Durable Build: Designed for industrial-grade performance in challenging environments.
8. Easy Integration: Configurable via STEP 7 software for tailored applications.

How It Works

The Siemens 6ES7322-1BH01-0AA0 connects to the S7-300 PLC and outputs digital signals to control various external devices. These signals activate or deactivate equipment like relays, valves, or alarms based on the logic programmed into the PLC.

For instance, in a manufacturing line, it could switch on conveyor belts, control solenoids, or trigger warning lights. Its high current capacity allows it to operate heavy-duty devices, while its relay-based outputs provide flexibility for both AC and DC loads. Integrated diagnostics ensure quick fault detection, maintaining system reliability and reducing downtime.
