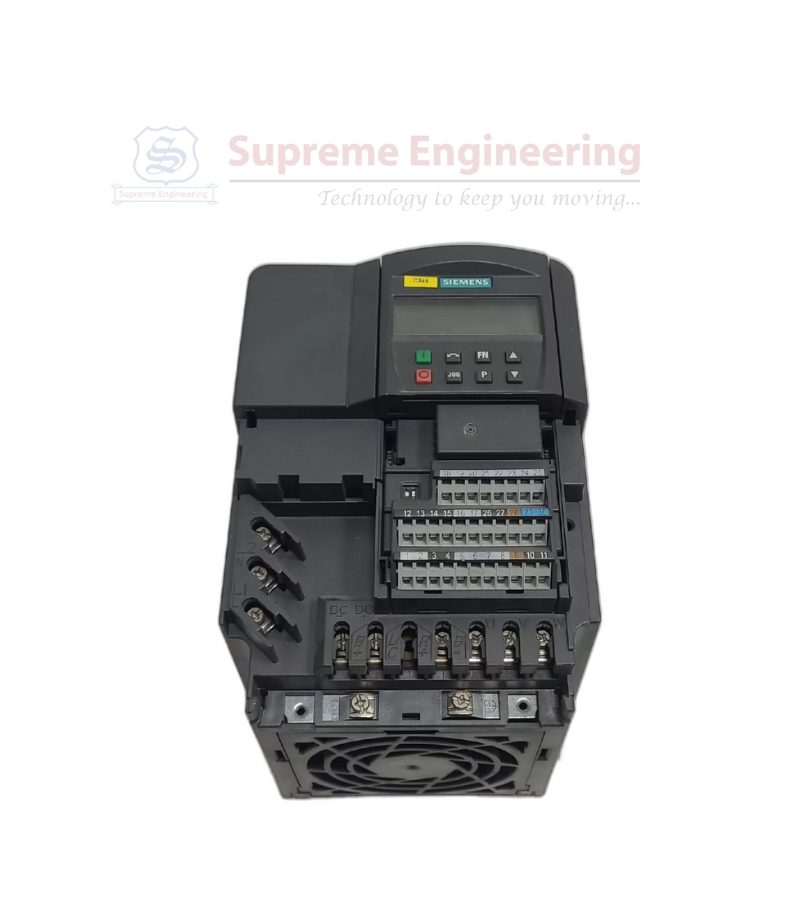

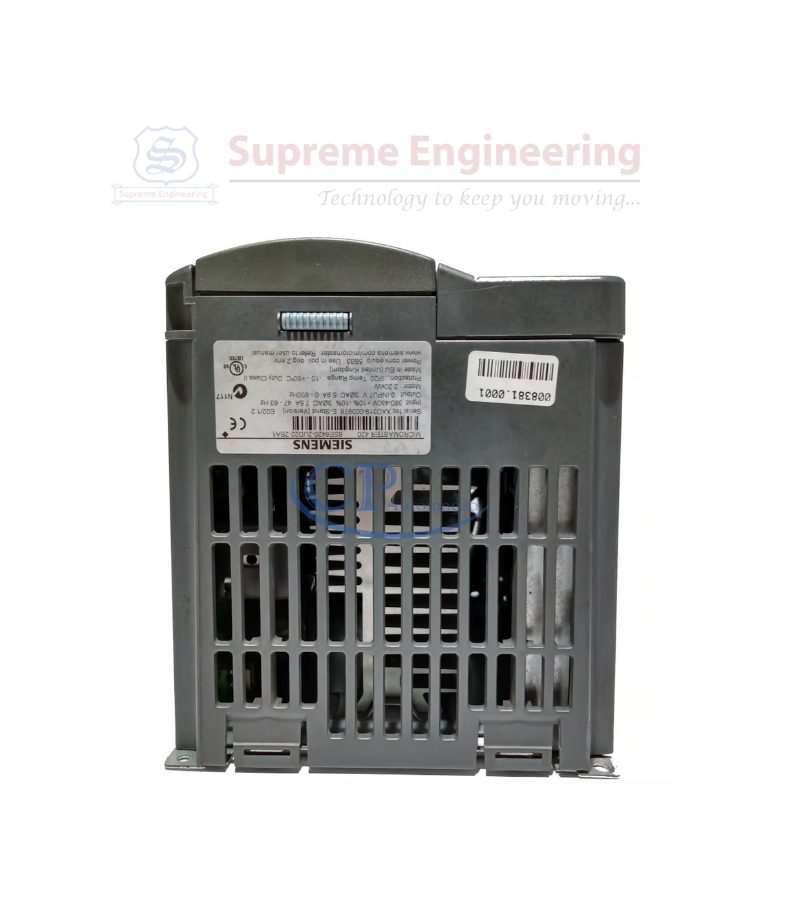

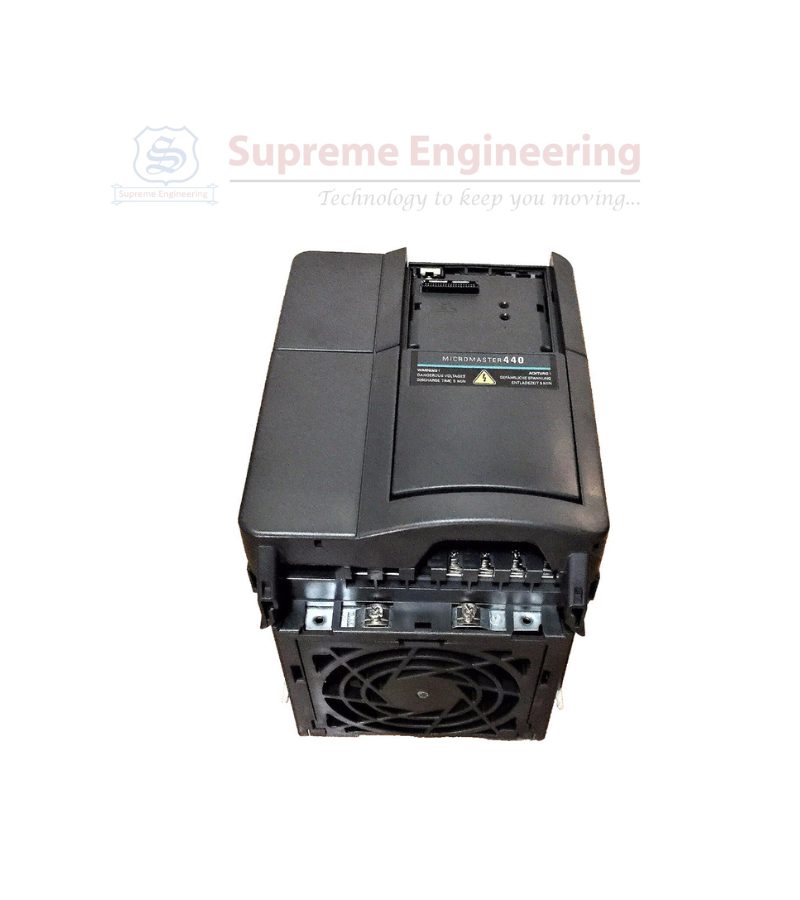

Siemens 6SE6440-2UD22-2BA1

Siemens 6SE6440-2UD22-2BA1 (VFD)

The Siemens 6SE6440-2UD22-2BA1 is a high-performance variable frequency drive (VFD) from the MICROMASTER 440 series, designed for precise and reliable motor control. It is particularly suitable for applications requiring dynamic response and robust performance, including conveyors, pumps, fans, and industrial machinery.

Specifications

1. Protection Class: IP20 (open type).
2. Control Modes:
   • Vector Control for precise torque and speed management.
   • V/Hz Control for general-purpose applications.
3. Ambient Conditions:
   • Operating Temperature: -10°C to +50°C.
   • Storage Temperature: -40°C to +70°C.
4. Communication: Optional modules for PROFIBUS, Modbus, and other protocols.
5. Cooling System: Integral cooling for consistent operation.

Features

1. Dynamic Motor Control: Supports vector and V/Hz control modes, offering precise speed and torque adjustments.
2. Energy Efficiency: Optimizes energy usage for various applications, including pumps, fans, and conveyors.
3. Compact and Durable Design: Space-saving form factor with robust construction for industrial environments.
4. Safety Features: Includes Safe Torque Off (STO) functionality for enhanced operational safety.
5. User-Friendly Interface: Features an intuitive keypad for parameter configuration and diagnostics.
6. Programmable Parameters: Customizable settings for diverse operational needs.
7. Fault Protection: Built-in overload and short-circuit protection mechanisms ensure system safety.
8. Modular Communication: Expandable communication options for integration into industrial networks.

How It Works

The Siemens 6SE6440-2UD22-2BA1 VFD operates by varying the frequency and voltage supplied to an AC motor, enabling precise speed and torque control. It converts the fixed-frequency AC input into variable-frequency AC output, providing dynamic motor control for efficient operation across diverse applications.

The vector control mode ensures rapid response to load changes and delivers high torque accuracy, making it ideal for demanding industrial tasks. Meanwhile, the V/Hz control mode serves as a simpler, energy-efficient option for less intensive applications. This drive enhances productivity, reduces energy consumption, and ensures reliable performance in challenging environments.
